Wingman

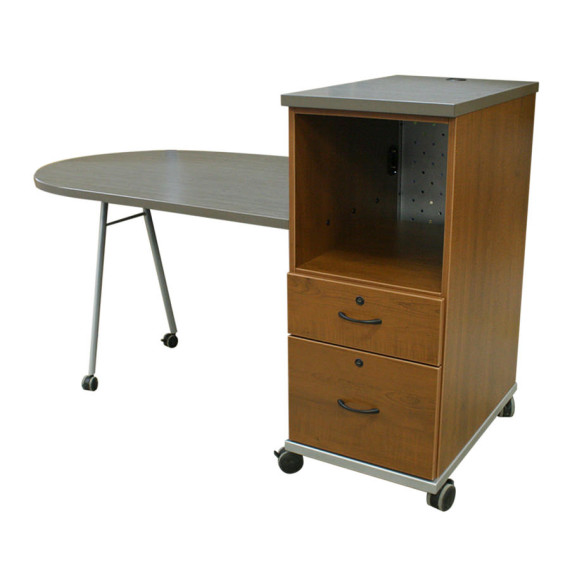

Wingman... mighty, mobile and with storage where you need it. Wingman awaits your choice of melamine, laminate, powder coat, and edge colors. Choose a model with drawers or cabinet storage. Wire management grommets are standard in cabinet top and side. Work surface is available in bell and bean shapes. Cabinet receives (4) casters and "A" frame leg assembly receives (2) twin-locking casters.

Available with cabinet located on user's right or left.

See Full Description

Cut Sheets
AutoCAD
Hi-Res Images
List Price Sheets

General Specifications

  • 42"H Cabinet is constructed with 3/4" thick engineered wood with either thermally fused laminate or high pressure laminate box finish and 3mm PVC or 3mm wood edges.
  • 29.25"H Work surface is 1-1/4" thick, three-ply particleboard with .050" high pressure laminate top surface and .030" phenolic backer. Edge types included 3mm hardwood (E) and PVC (C).
  • 2 grommets are provided. One located in the work surface and one located in the cabinet wall adjacent to the desk work surface.
  • Box and file drawer model receives one open storage area, one box and one file drawer each with full extension 100# ball bearing drawer slides. Cabinet model receives one opens storage area and one locking cabinet.
  • Cabinet frame is 11 gauge 1-1/4" square steel tubing. Frame assembly is attached to cabinet using wood screws. Mobile units use casters that attach via threaded inserts on underside of the steel frame assembly.
  • Table tops are 1" thick, three-ply particleboard with .050" high pressure laminate top surface and .030" phenolic backer. Edge types included 3mm hardwood (E) and PVC (C). Corners on rectilinear tops are square with 1/8" radius. Tops are available in  Bell or Bean  shapes.
  • Leg set is 7/8" x 1-1/4", 16-gauge oval powder coated steel tubing, in the shape of an "A" The legs are welded to a 3/16" steel top plate. The bottom of each leg is capped with a 1/4" plate and bored and tapped to allow the attachment of a twin-wheel locking caster. Tables are fitted with a matching laminate modesty panel.
  • Cabinets may be ordered located on the user's right or left.


Overall Dimensions
Depth: 32.5"
Width: 65.5"
Work surface height: 29.25"
Cabinet height: 42"

Finishes

9311 58 Silver Oak Herringbone
General Laminates

OPTIONS: 31

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Formica Amber Maple7012
Laminate - Wood Grain

OPTIONS: 11

Our Wood Grain laminates are designed to match our Oak and Maple Finishes.
* Wood is a natural product and laminate is manufactured. The grain and color may vary.

Stainless
Melamines (TFL) Group I

OPTIONS: 5

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless Aluminum.

Viva Walnut
Melamines (TFL) Group II

OPTIONS: 4

Pricing is the same as Group 1 colors.  However, additional lead times may apply for large projects. Coordinating PVC and HPL finishes are available for most melamine selections.

Hardrock Maple-CP20332
PVC

OPTIONS: 25

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

701 Capri Blue
Powder Coat Colors Group II

OPTIONS: 7

All chairs are available in Designer powder coat colors. Tables may also be specified with Designer powder coat colors. There is a one time charge per order/color for these powder coats.
