A variety of shapes and sizes allow collaboration in an ever-changing environment. Each leg is fitted with a leveling glide, or add two casters or four or six! Rockford Fixed Height tables are available in multiple heights. Surfboard pairs nicely with Rockford tables.
Work Surface: Table tops are 1-1/4” thick, with a 1-1/8” thick, three-ply particleboard core with .050 high-pressurelaminate top and a .030” or thicker phenolic backer. Edges are 3mm PVC.
Leg: Each leg is composed of a powder coated 14-gauge, 1-1/2” diameter steel tube with a welded mounting plate that is 1/8” thick steel, welded to leg at the top and a reinforcement gusset of 1/8” thick steel, welded to mounting plate and leg tube. Each leg is provided with a leveling glide at the bottom.
Gusset: 1/8” thick steel, welded to mounting plate and outer tube.
Mounting Plate: 1/8” thick steel, welded to outer tube and gusset. Each leg is mounted to the table with seven (7) 1” #12 wood screws. Insert & machine thread screw (metal-to-metal) available upon request.

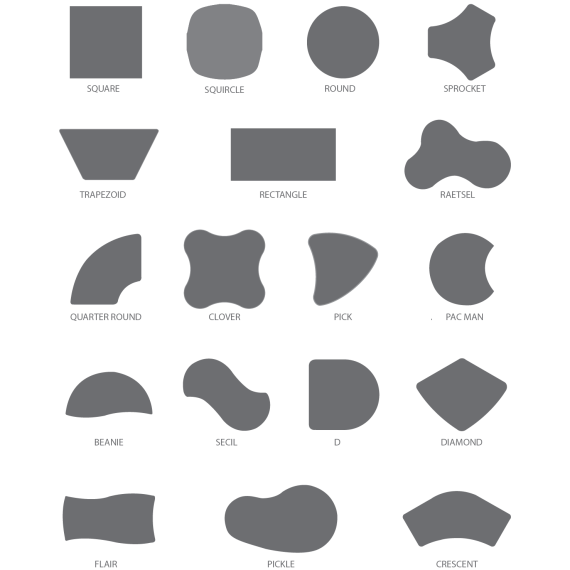

Overall Dimensions
Heights: 25", 27", 29", 31"
Rectangular Depths: 24", 30"
Rectangular Widths: 36", 42", 48", 60", 72"
Square and Round: 42", 48", 60"
Squircle: 36", 42", 48", 54", 60"
Pac Man: 36", 42", 48" DIA
Qtr Round: 24"/36" x 36"
Trapezoid: 30" x 30" x 30" x 60"
Beanie: 29.25" x 58.375"
Flair: 32.25" x 59.5"
Raetsel: 45" x 65"
Clover: 48" x 48"
Secil: 30" x 72"
"D" Shape: 30" x 42"
Diamond: 32" x 42", 37” x 46”
Crescent: 36" x 72"
Sprocket: 60" x 60"
Pickle: 36" x 60"
Wave: 32.5" x 59.5"
Note: Beanie, Flair, Wave and Sprocket tops receive 2" radius corners
OPTIONS: 26
OPTIONS: 19
Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
OPTIONS: 79
Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
OPTIONS: 35
PVC Applies to front edges as well as work surface edges in 3mm PVC.
* Indicates available for work surfaces only.
