Orbit - mediatechnologies

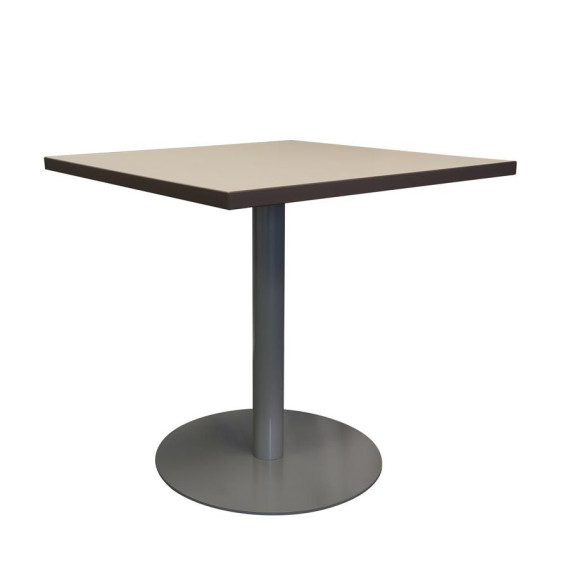

Orbit Square - O17-C3030-29 - Sail White - Medium Tone PVC

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

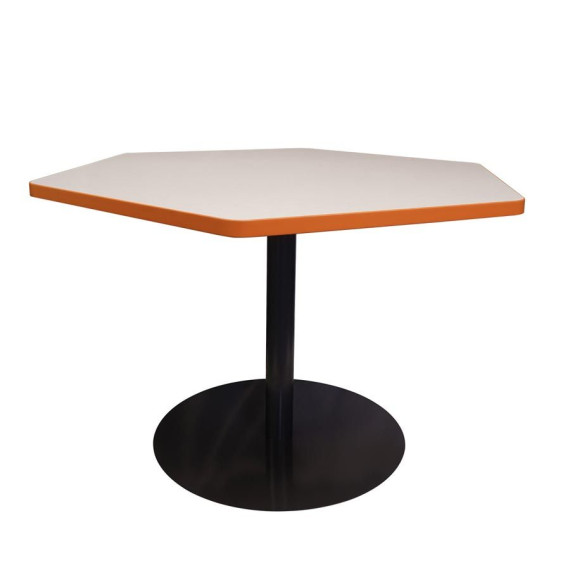

Orbit Hex - 027-C0042HXR

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

Orbit Cafe -O22-C0036-42

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

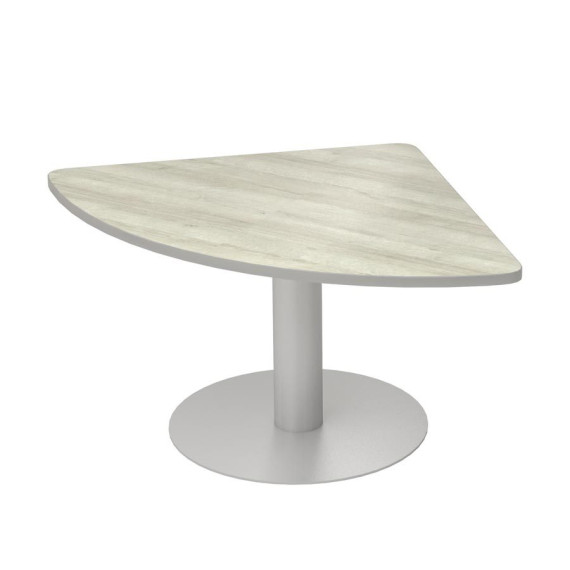

032-C4848BD-29

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O27-4872D-29

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O27-W4242-29-FT

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

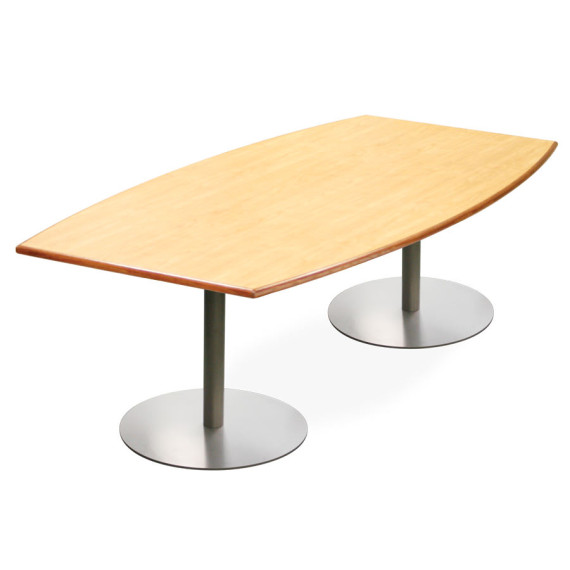

O27-GBT36/4872-29

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O22-C36/4872B-29

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

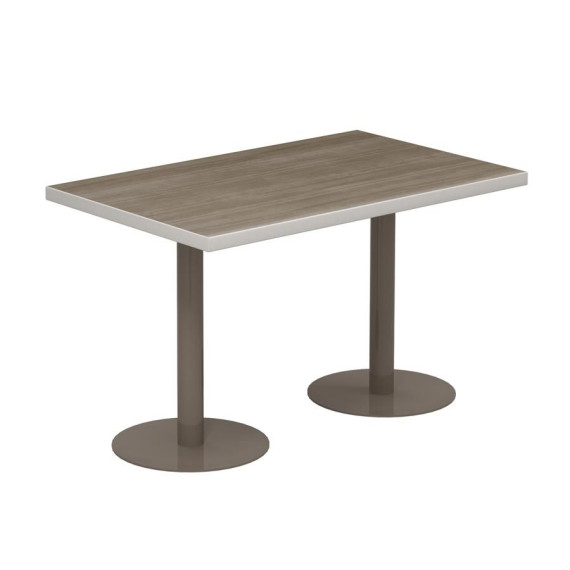

O17-C2448-36

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O27-C4042P-29

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

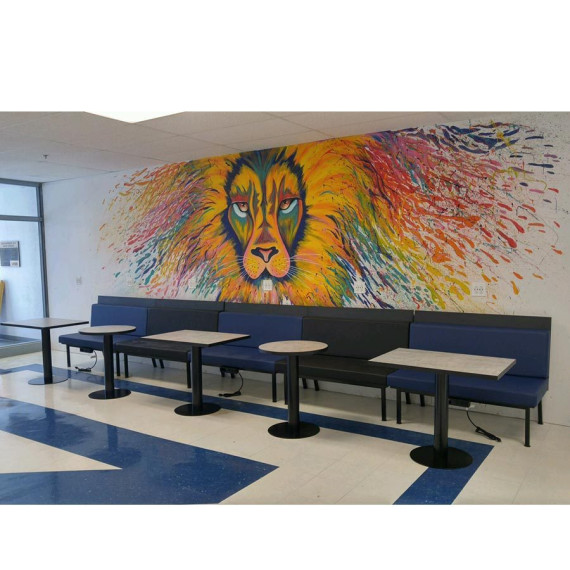

Northwest HS Deuce Lounge with Orbit Tables

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O17-C0030-16

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O17-C3030-16

Add to My Project Board

Log in or create an account to create a project board.

Orbit

Low profile powder coated steel disc base, provides a stable base with a classic look. Standard tops are available in round, square, rectangle, boat, racetrack and lightbulb-shape in the laminate of your choice. The base is fabricated steel and awaits your choice of powder coat. The variety of sizes and heights available for Orbit allow this table to be used in a multitude of spaces.

See Full Description

Brochure
Cut Sheets
AutoCAD
Revit
List Price Sheets
Instructions
Hi-Res Images

  • Table Top: Tops are 1-1/4” thick, three ply engineered wood construction with .050” high pressure laminate (HPL) and a phenolic backer sheet. The edges specified for this product are 3mm PVC (“C” prefix to the table size in the part number), 3mm hardwood (“E” prefix to the table size in the part number), 5/8” hardwood bullnose (“G” prefix to the table size in the part number),8mm Wood ("F" prefix to the table size in the part number), Not all edges are available for each table top shape. Refer to the List price Sheets for available edges per top.
  • 17”, 22” & 27” Disc – Single Column: 14-gauge, 3” diameter column, 5/16” thick steel disc plate (size varies depending on table top dimension), 11-gauge stamped steel mounting plate, 9.5” x 9.5”. Mini-levelers come standard and will position the base 3/8” off floor.
  • 32” Disc – Single Column: 16-gauge, 6” diameter column, 5/16” thick steel disc plate (size varies depending on table top dimension), 4-gauge stamped steel mounting plate, 12” x 12”. Standard column base comes with no levelers. Optional levelers are available for an up charge. Optional levelers will position the base 1” off the floor. Contact the factory for optional leveling glides.

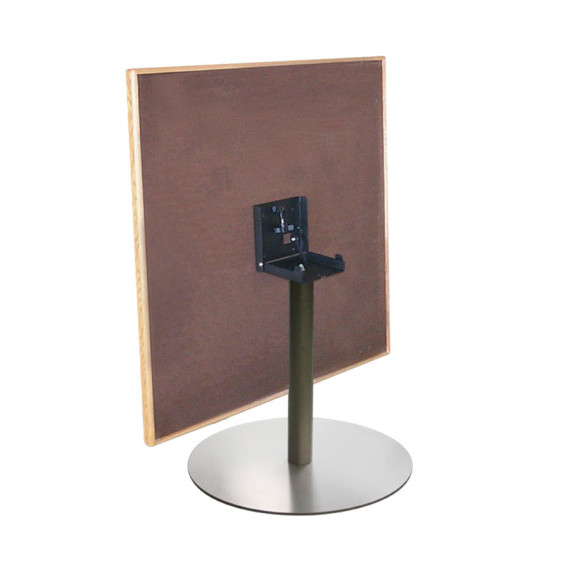

  • Flip Top Mechanism: Two-part steel mechanism is joined via a pivot system. Upper component attaches to underside of work surface using 1” #12 wood screws. Lower component bolts to column mounting plate. Flip top mechanism is available for single column tables only.



Overall Dimensions
Depths: 24", 30", 36", 48" and 60"
Widths: 60", 72", 84", 96", *120" and *144"
Round: 36", 42", 48", 54", 60"
Square: 36", 42", 48", 54", 60"
Quarter Round: 48" x 48"
Heights: 29", 36", 42"

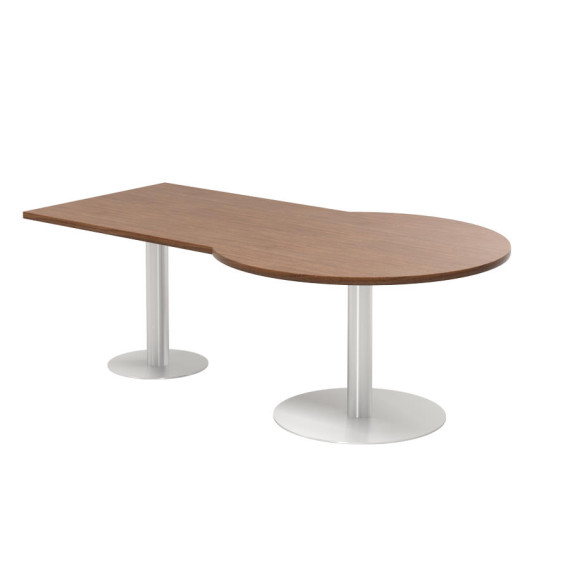

LightBulb
Depth:36"
Widths: 72", 84", 96"
Diameter: 48"
Heights: 29", 36", 42"

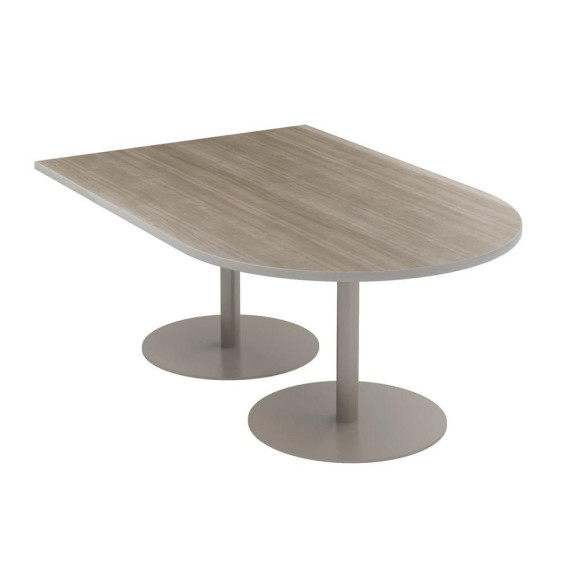

D-Shape
Depth: 36"
Widths: 72", 84", 96"
Heights: 29", 36", 42"


* Note: table widths of 120" or greater require 3 bases.

Refer to List Price Sheet for standard sizes available.

Finishes

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Silver 809 (G1) *Porter & Kineticos Approved
Powder Coat Colors

OPTIONS: 20

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
