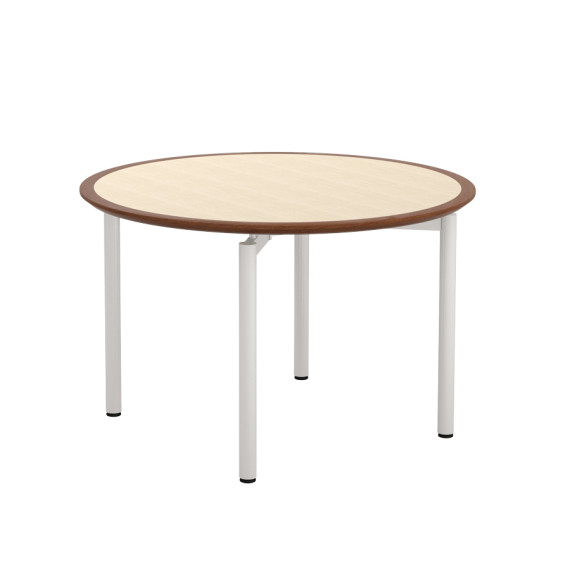

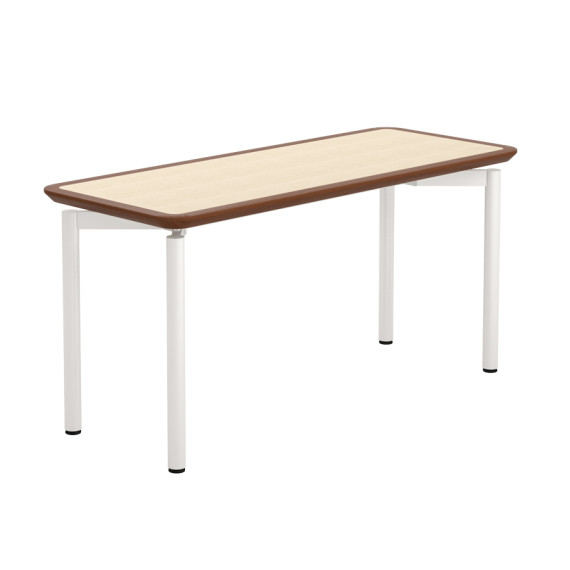

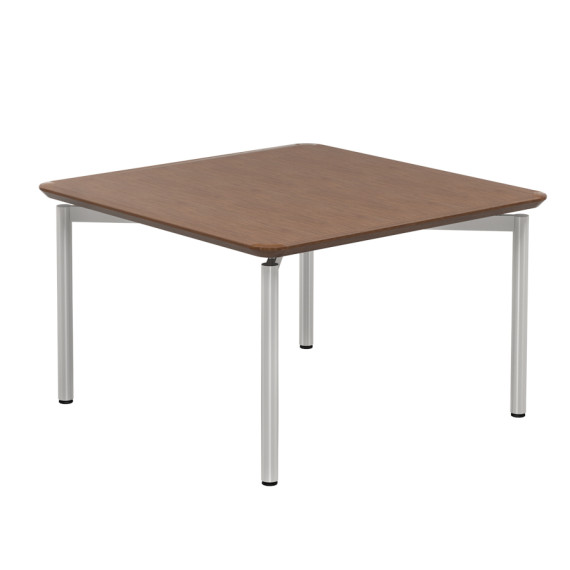

Malibu

Malibu's fully welded steel frame is fitted with adjustable glides (casters are an available option) and supports a laminate top by which you choose the edge type and laminate finish. The edges are available in wood or 3mm PVC.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

  • Tables use two end frame assemblies. Legs are 2" diameter 14 gauge steel tubing and are welded to a wishbone configuration of 1" x 2" 16 gauge steel tubing. The center of the wishbone is a 1/4" steel plate through which the stretcher is mounted.
  • Tops are 1-1/4" thick, three ply engineered wood construction with .050" high pressure laminate and a phenolic backer. The corners of the top are rounded with a 3" radius. Various edge options are available. Tops 60" and over are supported on the underside with a 14 gauge steel keel.
  • The table top is attached elevated from the 1" x 2" steel tubing portions of the end frame and stretcher with 1/4-20 by 4" bolts.
  • Legs are fitted with adjustable glides
  • Casters are optional

Overall Dimensions
Height: 29"
Widths: 24", 30", 36"
Lengths: 36", 42", 48", 60", 72"
Square and Round: 42", 48"

Finishes

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 25

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

9311 58 Silver Oak Herringbone
General Laminates

OPTIONS: 31

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Formica Amber Maple7012
Laminate - Wood Grain

OPTIONS: 11

Our Wood Grain laminates are designed to match our Oak and Maple Finishes.
* Wood is a natural product and laminate is manufactured. The grain and color may vary.

Silver 809
Powder Coat Colors

OPTIONS: 15

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
