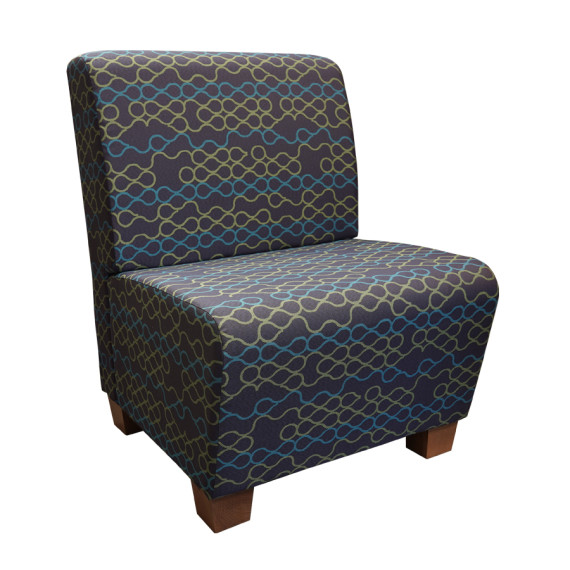

ENA-2529

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

ENA-2529-4W

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

ENAJ-4829-16

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

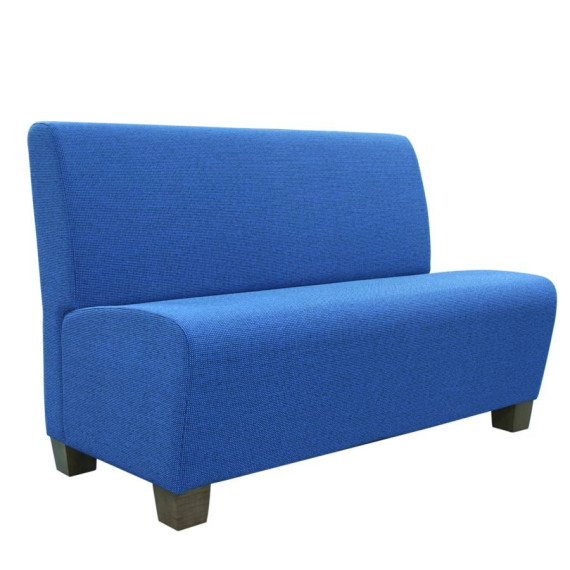

ENA-4829-4W

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

ENA-4829-4D

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

ENAWJ-3035-16

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

ENAW-3035

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

ENAW-3035-4C

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

EN-3029-4D

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

EN-3029-4D - Momentum Hearsay-Tide

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

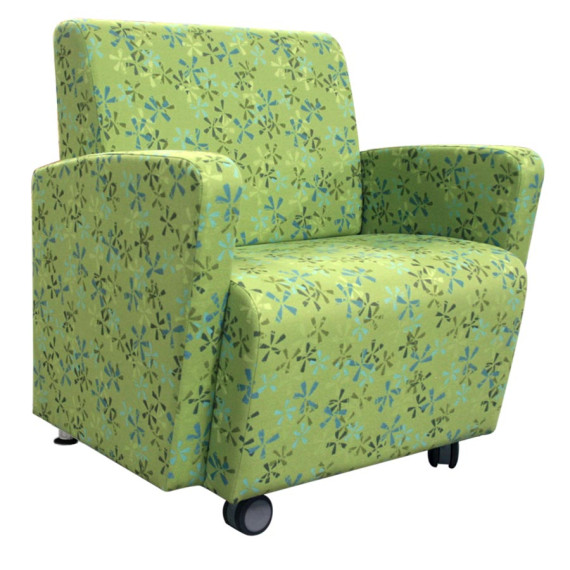

EN-3029-2D

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

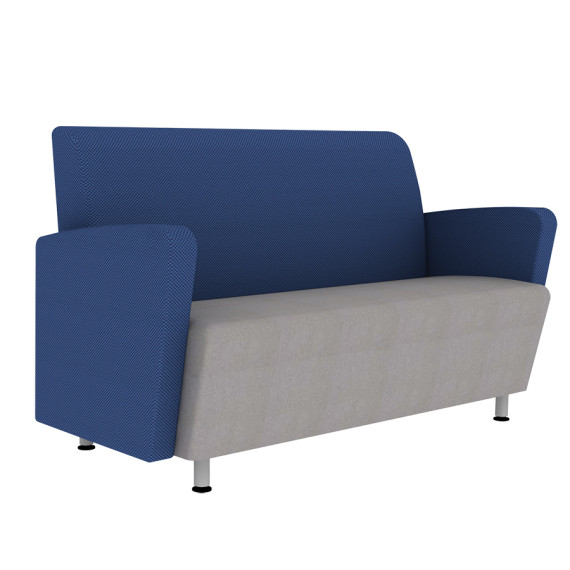

EN-5329-4D - Mod Blue & Florentino Turquoise

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

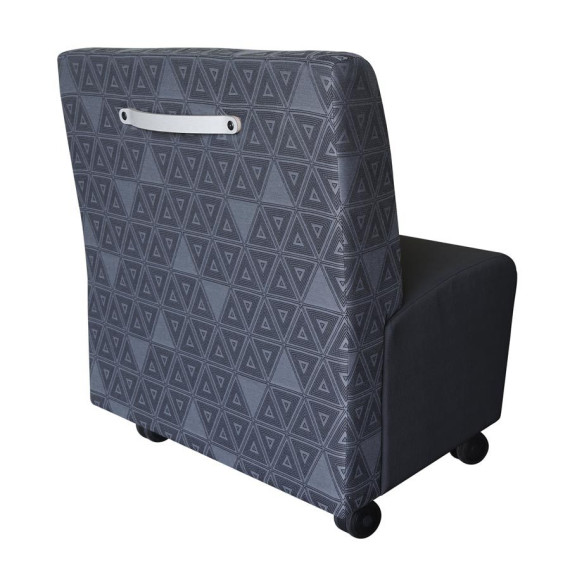

Handle detail

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

ENATR-2529-4C Mobile Engage with Tablet Arm

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

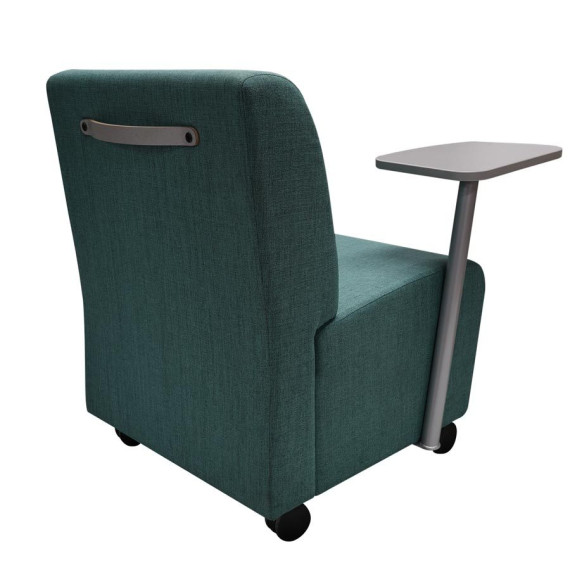

ENATR-2529-4C Mobile Engage with Tablet Arm - Rear view

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

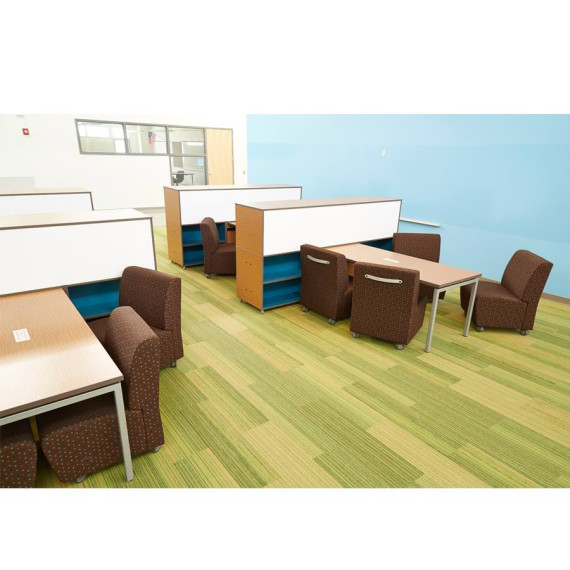

George Sanchez ES

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

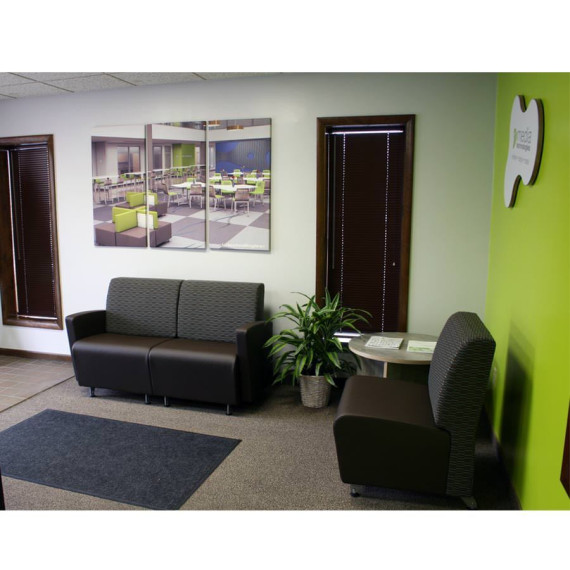

mediatechnologies

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

Engage Lounge seating (foreground) Kirby Tables and Roundhouse MOB (background)

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

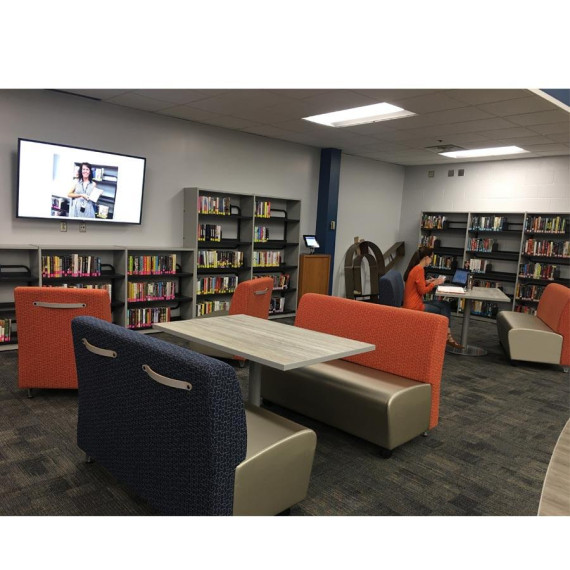

Engage Lounge, Orbit Tables and 31-Series Shelving

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

Rubix, Hannah, Forum, Engage and Blox

Add to My Project Board

Log in or create an account to create a project board.

Engage

One arm, two arms, no arms... wheels?! Engage seating provides the versatility of a single chair with configuration options to create interesting layouts within your space. Fully upholstered with your choice of fabric. Choose from a powder coated leg with adjustable black glide, wood legs, or even casters! Caster option comes with mobility pull handle. Add connectivity or tablet arm to increase usage type or both.

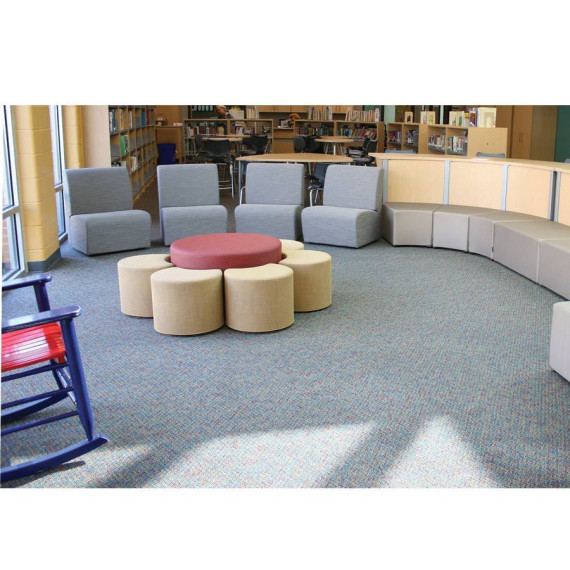

Oh Hey! Check out the Engage Jr's! Lots of folks wanted Engage Seats for the shorter
clientele. Here they are - great lounge seating - just a bit shorter. Deja vu!
*Available only as armless (ENAJ-2529-16, ENAJ-4829-16, ENAWJ-3035-16)

See Full Description

Brochure
Cut Sheets
Forms
AutoCAD
Revit
Revit Materials
List Price Sheets
Hi-Res Images

  • Seat: Engage seat is constructed with 4/4 Alder hardwood and is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner seat frame. The seat is then covered with 5” of foam with 1.8 density and a 36 ILD rating.
  • Back: The back is constructed with 4/4 Alder hardwood and is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner back frame. The back is then covered with 2.5” of foam with 1.8 density and a 24 ILD rating. The back is secured to the seat with T-nuts and 4 bolts.
  • Arms: are constructed with 4/4, 5/4 and 6/4 Alder hardwood and is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner frame. The arms are then prepared with emelin and covered with 1/2” of foam. Arms are attached to the seat and back frame with T-nuts and 3 bolts. Note: Arms are identified as “right” or “left” from the perspective of one who is seated in the seat.
  • Tablet Arm: Tablet arm work surface is 3/4” thick. Top of work surface is .050 high-pressure laminate with .030 phenolic backer. Work surface is mounted to a powder coated steel tube which is fixed to the seat frame. Edgebanding is 3mm PVC.

Overall Dimensions
Depths: 29", 35"
Widths: 25", 28", 30", 48", 51", 53"
Overall Height: 33.5"
Seat height: 18"


Engage JR.

  • Seat: Engage JR. seat is constructed with 4/4 Alder hardwood and is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner seat frame. The seat is then covered with 5” of foam with 1.8 density and a 36 ILD rating.
  • Back: The back is constructed with 4/4 Alder hardwood and is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner back frame. The back is then covered with 2.5” of foam with 1.8 density and a 24 ILD rating. The back is secured to the seat with T-nuts and 4 bolts.
  • Glides: Seats are fitted with 1”H ABS self-leveling glides.
  • Connectivity Options: Engage JR. Seating can be fitted with connectivity accessories on the right or left side of the seat. Use the suffix -ER to indicate connectivity location to be the right side or use -EL to indicate connectivity location to be the left side. Note: “Right” and “left” are determined from the perspective of one who is seated in the seat.

Overall Dimensions
Depths: 29", 35"
Widths: 25", 30", 48"
Overall height: 31.25"
Seat height: 16"


Fabrics

Finishes

Formica Amber Maple 7012-58
Laminate - Wood Grain

OPTIONS: 11

Our Wood Grain laminates are designed to match our Oak and Maple Finishes.
* Wood is a natural product and laminate is manufactured. The grain and color may vary.

Vibrant Green 6901-58
Laminate Seating+

OPTIONS: 17

Seating+ Laminates for shell chairs and more is a collection of standard laminates for shell chair use.
Some of these patterns/colors are also available for tables.

These are special laminates selected for our Bella, Romak and Slide seating.
Can combine these laminates for a unique "front/back" appearance.

Minimum order: 10 (of the same laminate). Orders of less than 10 of the same laminate will incur a $200 upcharge. Laminate choices outside of this range of selections will incur a $200 set up fee. Dual Tone laminate is available (differing inside and outside laminate selections) for $22 list per chair.

Some of these patterns/colors are also available for tables.... hence the +

9311 58 Silver Oak Herringbone
General Laminates

OPTIONS: 50

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Silver 809 (G1)
Powder Coat Colors

OPTIONS: 15

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
