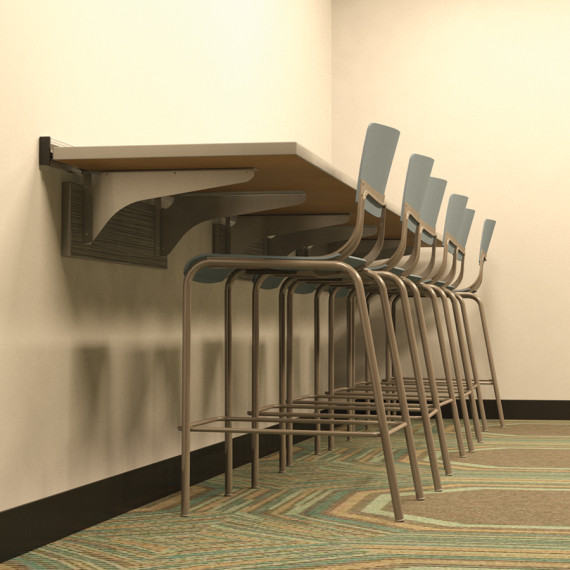

Worksurface Support Arm and Vertical Standard attached to Track and Worksurface

Add to My Project Board

Log in or create an account to create a project board.

elements™ Counter - mediatechnologies

WSCS - Worksurface Corner with Straight Corner

Add to My Project Board

Log in or create an account to create a project board.

elements™ Counter - mediatechnologies

WSCR - Worksurface Corner with Radiused Corner (Concave Curve)

Add to My Project Board

Log in or create an account to create a project board.

elements™ Counter - mediatechnologies

WS - Rectangular Worksurface

Add to My Project Board

Log in or create an account to create a project board.

elements™ Counter - mediatechnologies

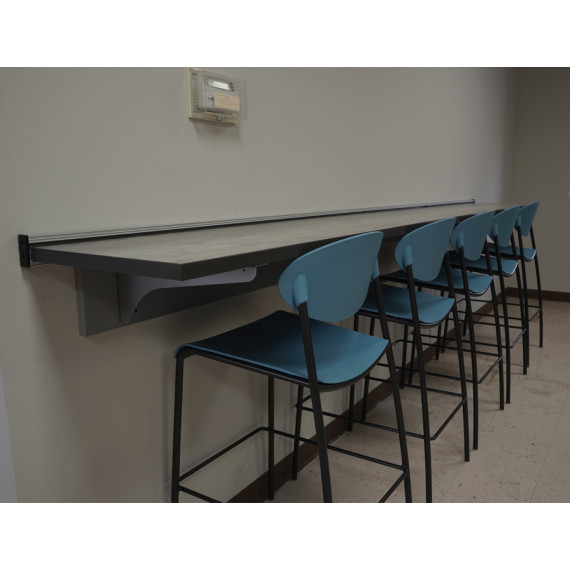

elements™ Counter with WSB Worksurface

Add to My Project Board

Log in or create an account to create a project board.

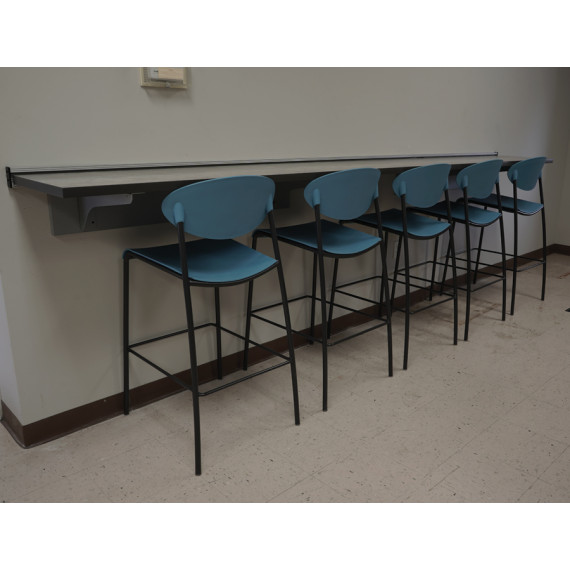

elements™ Counter

By Elements

Whether you are adding an entire computer lab or simply adding a workstation to your space, elements™ counters are a comprehensive and flexible solution.  Since the surfaces are track-mounted, if your needs change, you can easily remove or reconfigure them.

See Full Description

Videos
AutoCAD
Instructions
List Price Sheets

elements™ Counters are typically constructed from the following components. (there are, of course, other surface shape possibilities:

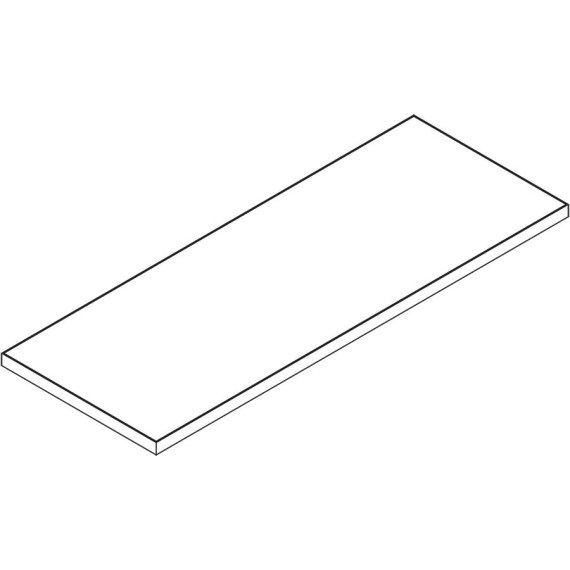

WS - Rectangular Worksurface

  • Depths - 20", 24", 30"
  • Widths - 30", 36", 42", 48", 60", 72", 84", 96", 120", 144"
  • Square - 30 x 30", 36 x 36"

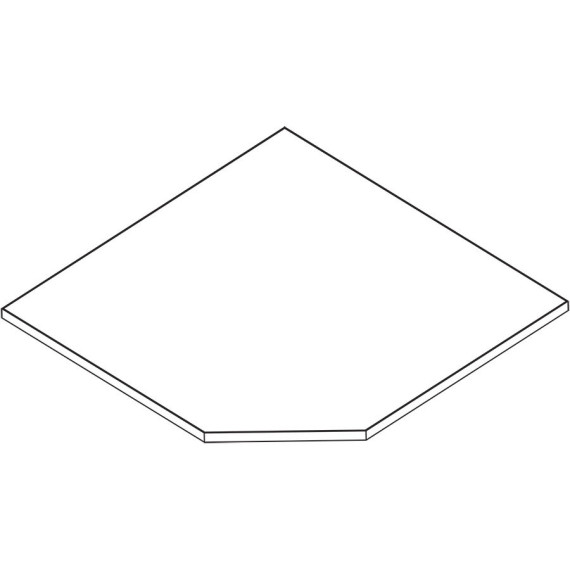

WSCS - Corner Worksurface with Straight Edge

  • Widths - 42", 48"
  • Returns - 24/24", 30/24", 24/30", 30/30"

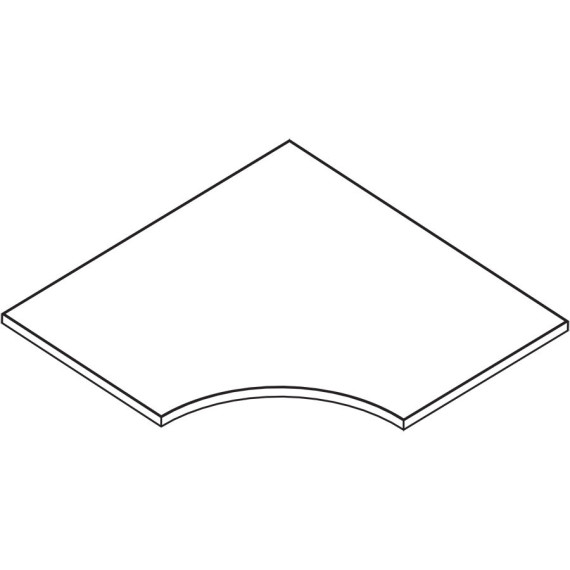

WSCR - Corner Worksurface with Radius (Concave Curve) Edge

  • Widths - 42", 48"
  • Returns - 24/24", 30/24", 24/30", 30/30"

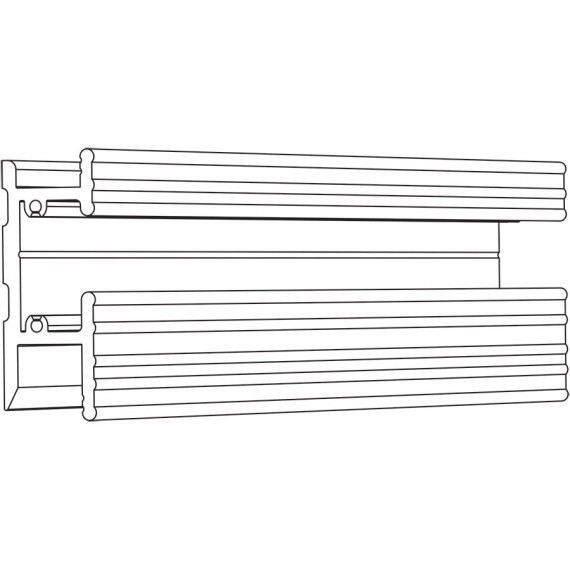

HT-96 - Horizontal Mounting Track (yeah, kinda have to have it)

  • Anodized aluminum
  • 8ft sections

HTAEC - End Caps for Track

HTACS - Track Connector Splice

  • Use for aligning and connecting two sections of track

VST - Adjustable Vertical Standard Track

  • Attaches to lower horizontal track
  • Allows worksurface support arm to attach at adjustable heights 23" to 29"H at one inch intervals.

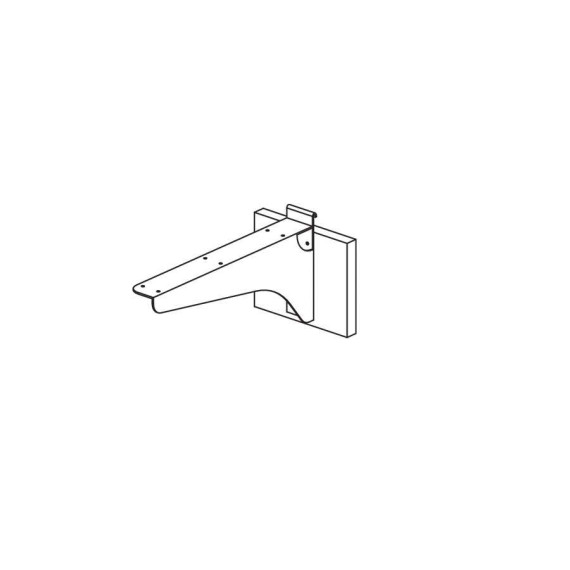

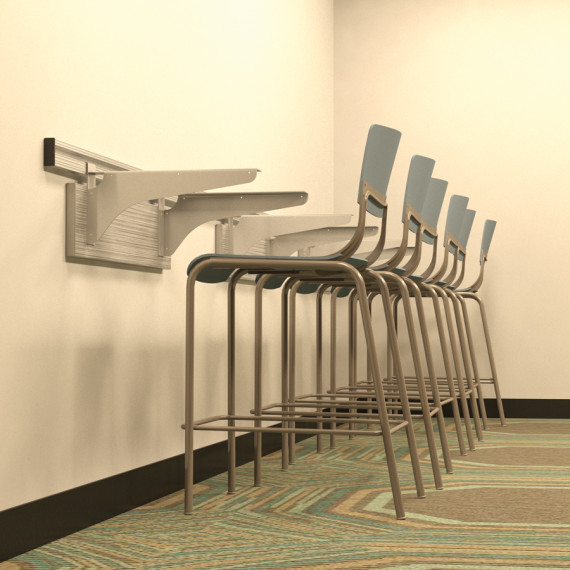

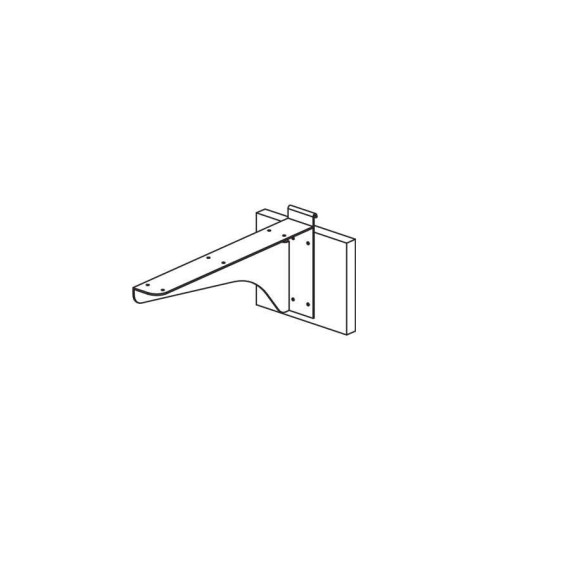

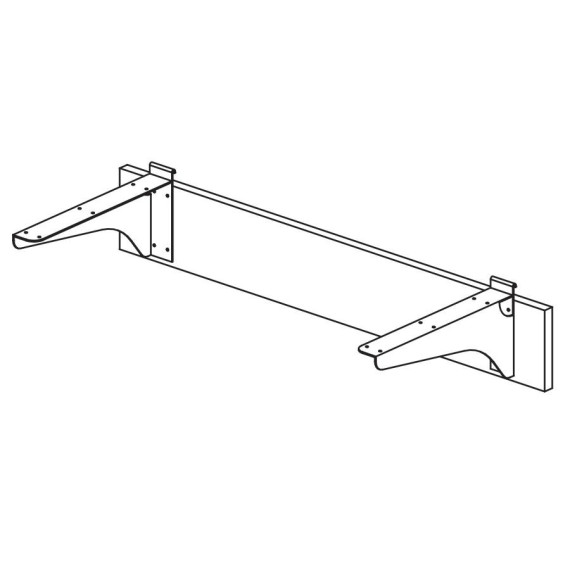

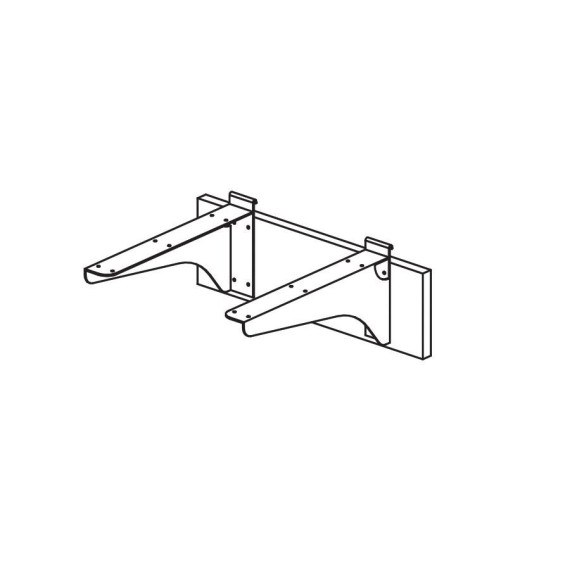

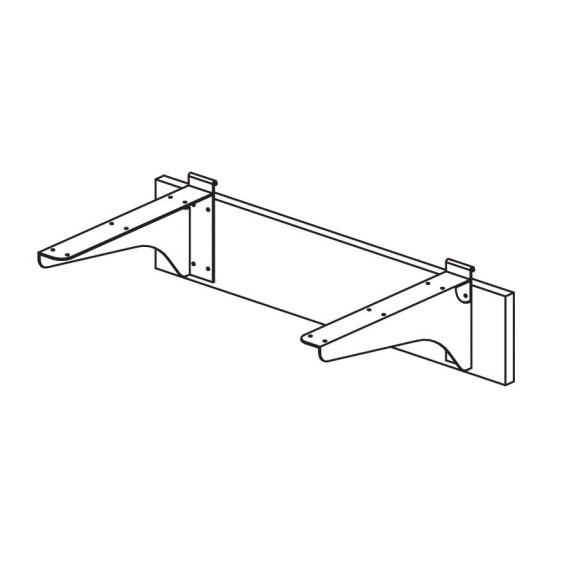

WSA - Worksurface Support Adjustable Arm

  • Adjustable height support arm
  • Right (WSAR) and Left (WSAL) Arms available
  • Attaches to Worksurface and to the Vertical Standard Track
  • Depths - 16", 22"

Other available hardware includes:

  • Horizontal track mounting hardware
  • Worksurface mending plate for joining worksurfaces
  • Worksurface support bracket

elements™ is a very flexible product line.  Through the addition of available storage and support components, the possibilities are only as limited as your imagination.

Finishes

9311 58 Silver Oak Herringbone
General Laminates

OPTIONS: 31

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 25

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
