Domino - mediatechnologies

DMDR-C3096L-29

Add to My Project Board

Log in or create an account to create a project board.

Domino - mediatechnologies

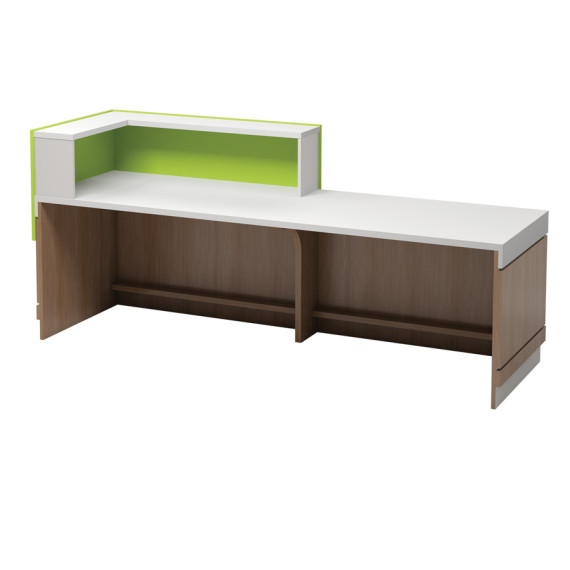

Left and Right Units together

Add to My Project Board

Log in or create an account to create a project board.

Domino - mediatechnologies

DMDL-C3069L-29 Patron Side

Add to My Project Board

Log in or create an account to create a project board.

Domino - mediatechnologies

DMDL-C3069L-29 User Side

Add to My Project Board

Log in or create an account to create a project board.

Domino - mediatechnologies

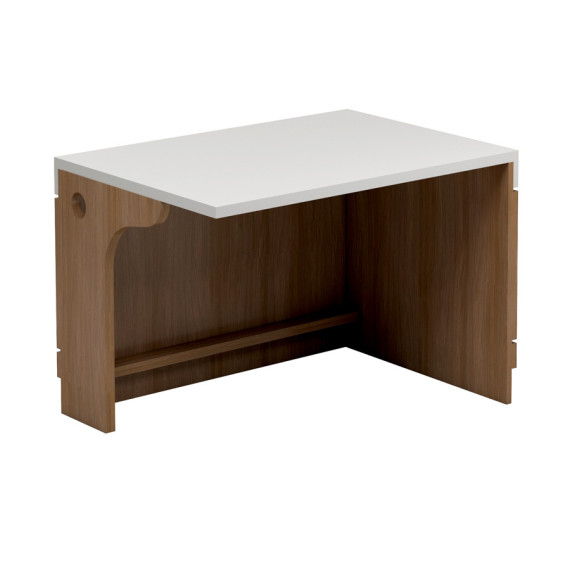

DMRR-C3036L-29 Return Unit Right

Add to My Project Board

Log in or create an account to create a project board.

Domino

Configure Domino to fit your needs with three sizes of right and left main units and 36” return units. High-pressure laminate work surface. Transaction top included. Grommets are available and should be ordered separately. Available in premium wood veneer or high-pressure laminate finishes. Contact the factory about combining finishes for a unique signature piece or to match a design motif. Choose a main finish and an accent finish if you wish.

See Full Description

Cut Sheets
Hi-Res Images
List Price Sheets

  • Cabinet Base/Toe: The inside front and side panels that comprise the base cabinet, including the toe, shall be 3⁄4” particleboard core with 3mm banding on the bottom edge and .5mm banding on the exposed side edges. Panels are joined with glue and dowel construction. Panels shall be finished on both faces in high-pressure laminate or premium wood veneer (unless another species is specified). The cabinet base shall include a sub top of 3⁄4” particle board core with 3mm banding on the user edge.
  • Decorative Overlay Panels: Decorative front and side overlay panels are 3⁄4” particleboard core with .050” high-pressure laminate or sequenced premium oak veneer faces (unless another species is specified) with .5mm banding. Top overlay panel is 2-7/8” O.A. height. Middle overlay panel is 16-7/17” O.A. height. Lower overlay panel is 2-7/8” O.A. height.
  • Work Surface: The worksurface shall be 1-1/8” particleboard core with .050” high-pressure laminate and .030” phenolic backer surfaces. The worksurface shall receive 1⁄4” wood banding.
  • Transaction Top: Transaction Top worksurface is 1-1/8” particleboard core with .050” high- pressure laminate faces and 1⁄4” wood banding. Transaction top supports are 3⁄4” particleboard core with .050” high-pressure laminate faces and 3mm banding. Transaction top front and side faces are 3⁄4” particleboard core with .050” high- pressure laminate or premium oak veneer (unless another species is specified) with 3mm banding. There is a mitered joint between front and side faces. (Transaction top is typically not included in construction of returns).

Main Unit Overall Dimensions
Depth: 30"
Widths: 84", 96", 120"
Transaction Height: 42"
Worksurface Height: 29"

Return Unit Overall Dimensions
Depth: 30"
Widths: 36", 42", 48"
Height: 29"


Finishes

9311 58 Silver Oak Herringbone
General Laminates

OPTIONS: 31

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 25

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.
