Classroom Media Carrels - mediatechnologies

TPP31-3036SSC

Add to My Project Board

Log in or create an account to create a project board.

Classroom Media Carrels - mediatechnologies

TPP31-3036SSCA

Add to My Project Board

Log in or create an account to create a project board.

Classroom Media Carrels - mediatechnologies

TPP31-3036DSC

Add to My Project Board

Log in or create an account to create a project board.

Classroom Media Carrels - mediatechnologies

TPP31-3036DSCA

Add to My Project Board

Log in or create an account to create a project board.

Classroom Media Carrels - mediatechnologies

T31-3036SSC

Add to My Project Board

Log in or create an account to create a project board.

Classroom Media Carrels - mediatechnologies

T31-3036SSCA

Add to My Project Board

Log in or create an account to create a project board.

Classroom Media Carrels - mediatechnologies

T31-3036DSC

Add to My Project Board

Log in or create an account to create a project board.

Classroom Media Carrels - mediatechnologies

T31-3036DSCA

Add to My Project Board

Log in or create an account to create a project board.

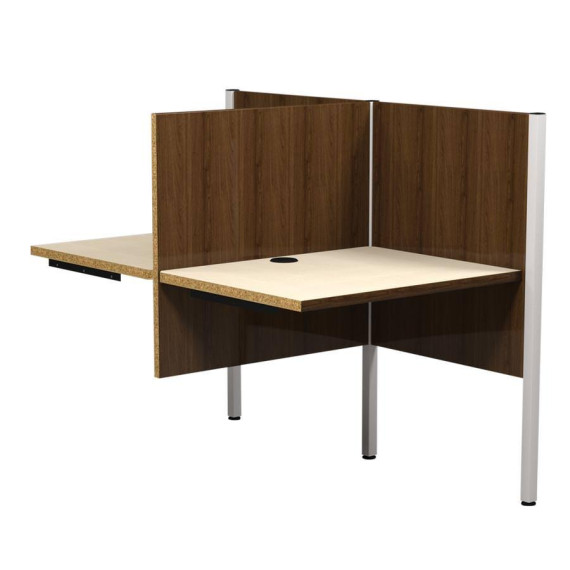

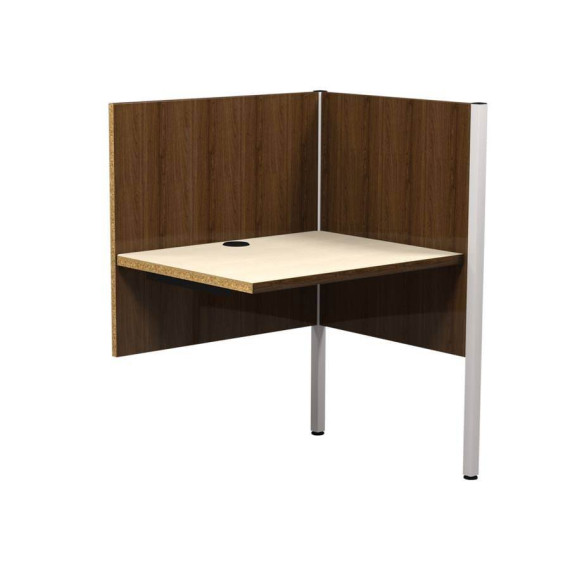

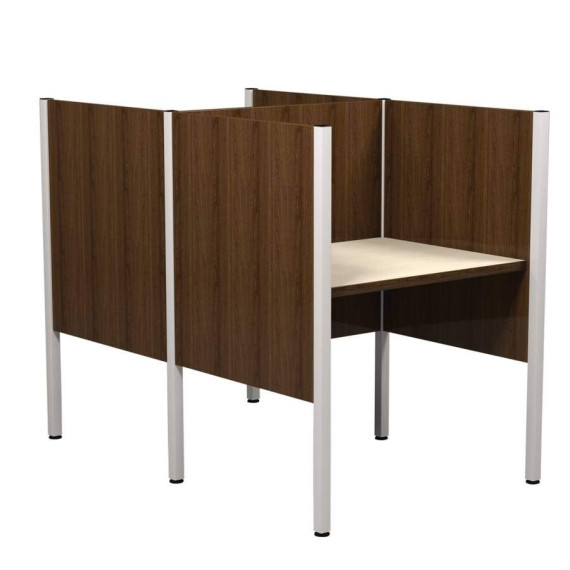

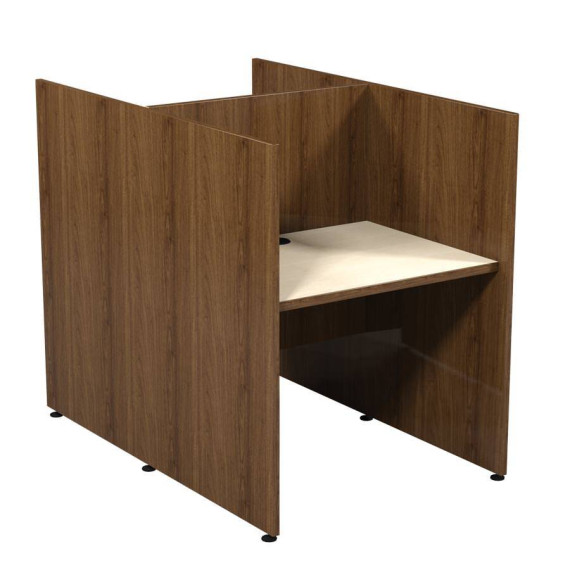

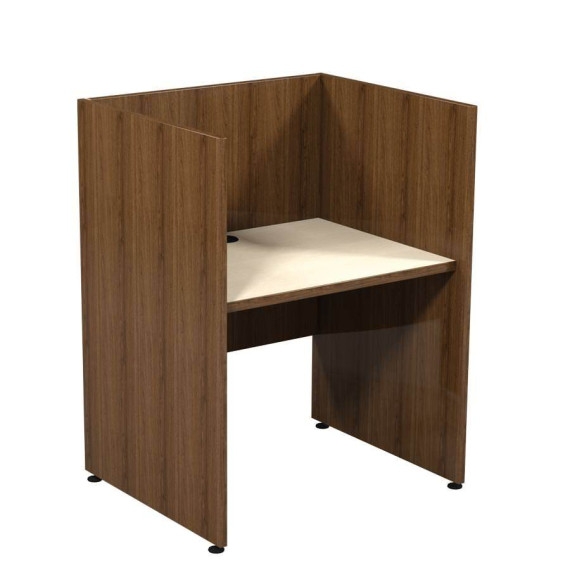

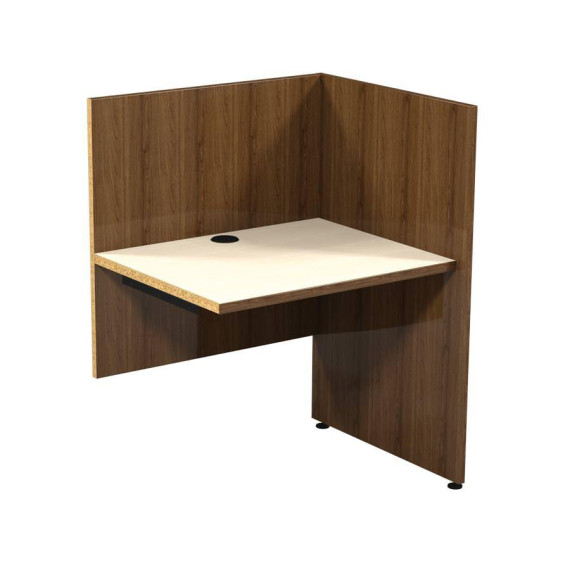

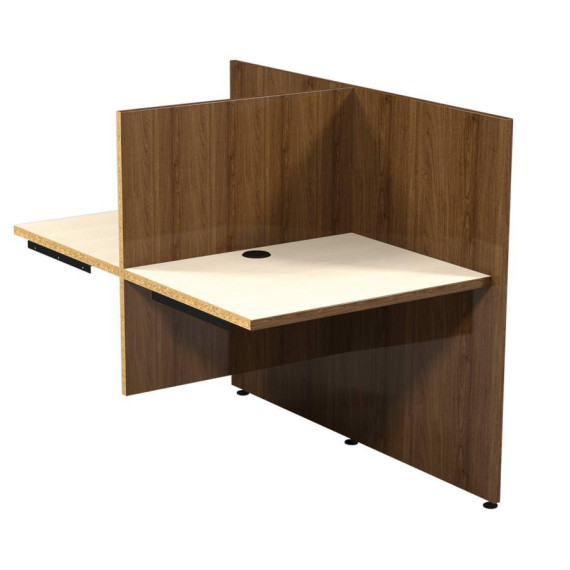

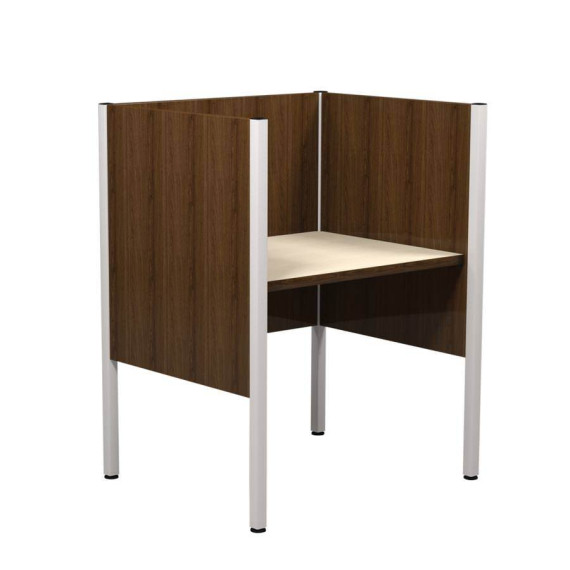

Classroom Media Carrels

The Classroom Media Carrelss are available in Panel End and Post & Panel End construction. Carrels are available in both starter and adder configurations, so you can assemble and arrange as you please. Choose from two worksurface widths - 35" and 47". Grommet included in each worksurface.

See Full Description

Cut Sheets
List Price Sheets

Tops: Tops are 1-1/4” thick, three ply engineered wood construction with .050” high pressure laminate and a phenolic backer sheet. The front edge is banded with 3mm PVC. Tops are attached to the side and back panels with (3) steel “Z” brackets. Tops are 35”W or 49”W and 24"D or 30”D.


End and Intermediate Panels: End and intermediate panels are 1” thick thermally fused melamine. All exposed edges are banded with 3 mm PVC. Double faced study carrels share a common back panel. Panels may also be specified at 32”H. Panels have embedded threaded metal inserts to accept machine threaded connecting hardware for metal-to-metal fastener contact. Each panel is equipped with an adjustable glide(s).
The standard height is 29”. Adjustable height may be specified.
Carrels are designed modularly and may be disassembled and reconfigured. Adder units are similar to initial units but substitute one intermediate panel for two end panels. 14 gauge steel tubing on Post & Panel construction carrels.


Nominal Overall Dimensions
Standard work surface height: 29”
Standard carrel height: 48”
Single-Face Carrels

  • Depths: 24" and 30"
  • Width: 38", 49"

Dual-Face Carrels

  • Depth 48" and 60"
  • Width: 38", 49"



Finishes

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 25

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

9311 58 Silver Oak Herringbone
General Laminates

OPTIONS: 26

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Stainless Aluminum w/ Rio Texture (G1)
Melamines (TFL)

OPTIONS: 16

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless Aluminum.

Silver 809 (G1)
Powder Coat Colors

OPTIONS: 15

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
