Bookmark

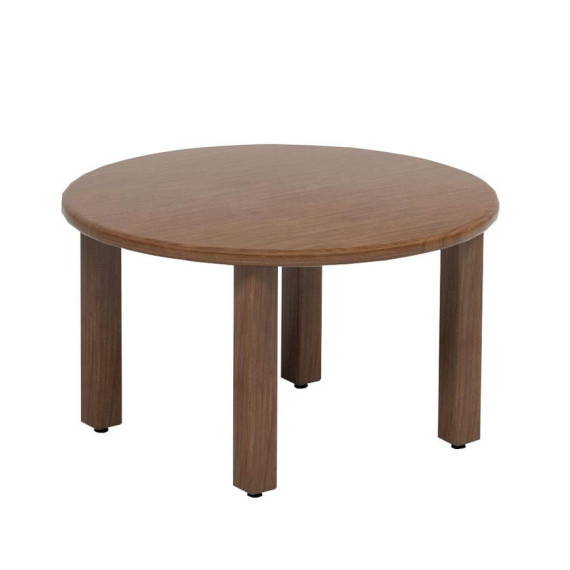

Bookmark's occasional table is just as solid as it's larger version. A laminate top of your choice is edged in solid red oak and radiused all around. The top rests upon 4 sturdy legs that are fitted with an adjustable black plastic glide. Aprons are standard. Choose any one of our standard veneer finishes or opt for a Sprayon finish to amp things up.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets
Instructions

  • Table Top: Table tops are 1-1/4” thick, three-ply engineered wood construction, with .050” high-pressure laminate (HPL) surface and a phenolic backer. The standard edge is 5/8”x1- 5/8” solid red oak with a 1/2” radius all around.
  • Apron: The apron is 1”x2” with a 1/8” radius on the exposed edges. Aprons span the distance between the legs and are attached with #8 Screws.
  • Legs: The legs are 2-1/4” solid glued up red oak with a 3/8” radius on all long edges. They are attached to the top by means of a 5”x5/16” steel plate. The leg and the plate are joined by (2) 5/16-18 matching bolts screwed into a 1/2” diameter barrel nut which is embedded in the leg. The steel plate is attached to the table top by (5) 5/16-18 machine bolts which screw into 5/16-18 metal inserts embedded in the top.
  • Each leg is equipped with a leveling glide.

Overall Dimensions
Depths: 24", 30", 48"
Widths: 24", 30"
Diameter: 30"
Heights: 18", 22"

Finishes

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

S29 Hummingbird
Finishes - Sprayon

OPTIONS: 12

Sprayon finishes applies to veneer. There is a one time charger per order/color (call for pricing). Actual colors may differ slightly from these representations.

Neutral Twill 8826-58
General Laminates

OPTIONS: 79

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 35

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
