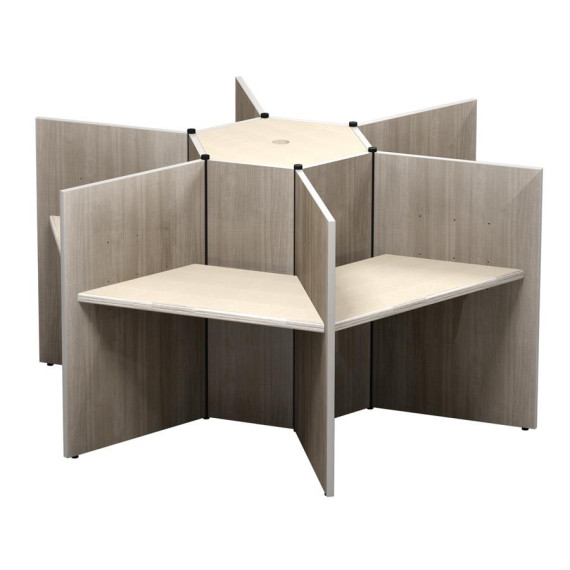

Bookmark Hex Carrel

Multi-use or single-user carrels are ideal for individual access areas or as look-up stations. Designer line panels can be used in carrel construction to match your table and bookcase stylistic theme. Carrels can be fit with connectivity options. Starter adder construction allows for larger groupings of carrels.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

  • Work surfaces are 1-1/4" thick three ply engineered wood construction with .050" high pressure laminate and a phenolic backer sheet. The front edge is 5/8" x 1-5/8" solid red oak with either (B) a 1/2" radius top and bottom, or (BB) a 1/2" bevel top and bottom. Work surfaces are attached to the side and back panels with 3 steel brackets.
  • Grommets are standard
  • End/intermediate panels: intermediate panels are 1-3/16" thick, three ply engineered wood with select red oak veneers on both sides. The panels are banded with 1/8" solid red oak on the top, bottom and front edge. Panels are attached to each other with Mod-eez fasteners.
  • Each panel is equipped with an adjustable glide.
  • Hex Lid: The hex lid is 1-1/4" thick three ply engineered wood construction with .050" HPL face and a phenolic backer sheet. The lid is supported by 3 metal brackets.
  • Power/Data: A USPCD power data module is fit into each back panel below the work surface. Each module has one interior and three exterior facing receptacles, a cat. 5 data jack and an on/off switch and provides power surge protection.

Overall Dimensions
Height: 48"
DIA: 96", 120

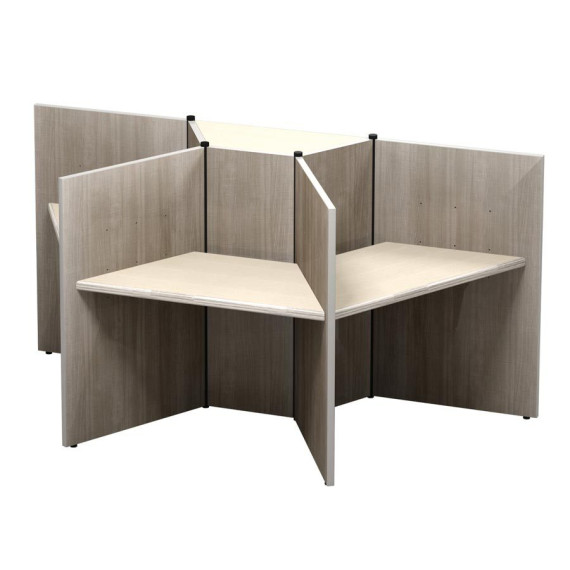

* Available in full or half

Finishes

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Neutral Twill 8826-58
General Laminates

OPTIONS: 79

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
