Book Truck

Wood book truck, awaits your choice of veneer oak or maple finish OR spice it up with one of our Sprayon finishes!

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

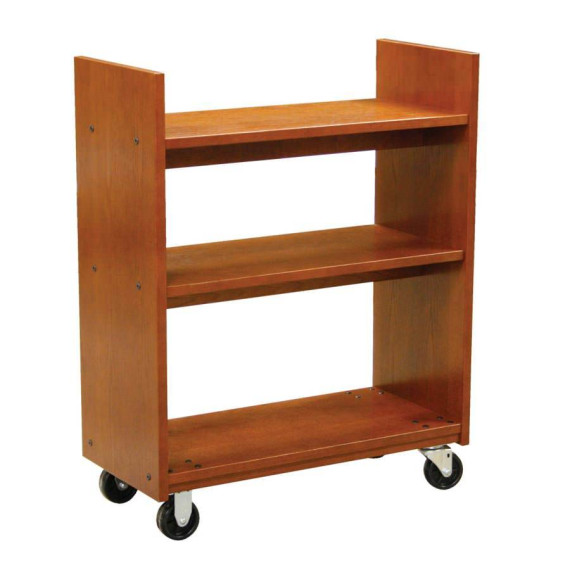

Book Truck

  • Constructed of 1" nine ply red oak veneer core plywood.
  • Edges are banded with 1/8" red oak.
  • All components are through bolted using 1/4-20 cabinet bolts and embedded cross dowels for metal to metal joints.
  • Book trucks use (2) 4" swivel and (2) 4" fixed casters for easy mobility.

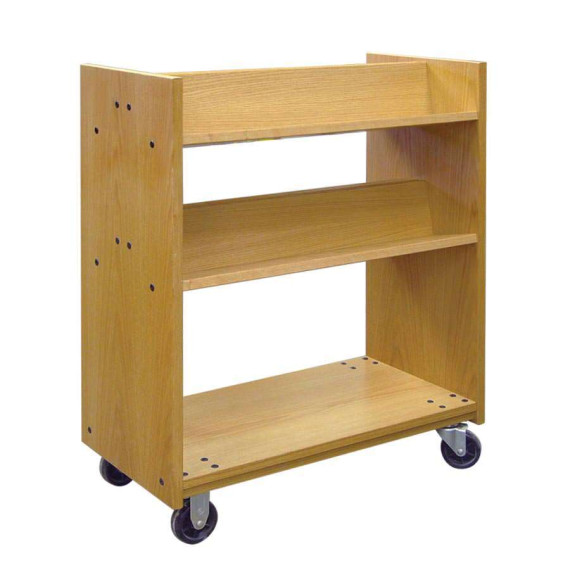

    Display Book Truck
    • Constructed of 1" nine ply red oak veneer core plywood.
    • Edges are banded with 1/8" red oak.
    • Two shelves on each side are tilted for display, each shelf has a 6" high backstop.
    • All components are through bolted using 1/4-20 cabinet bolts and embedded cross dowels for metal to metal joints.
    • Book trucks use (2) 4" swivel and (2) 4" fixed casters for easy mobility.

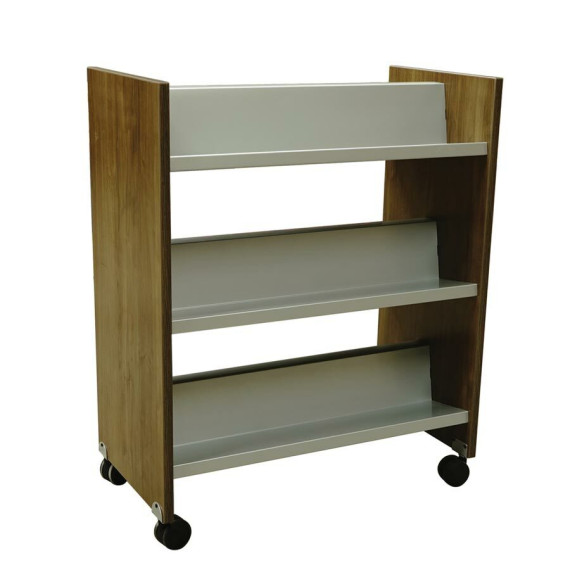

Steel Display Book Truck

  • Unit is constructed of 1-1/2" solid oak end panels with eased edges. End panels receive twelve 5/16"-18 inserts.
  • (3) formed 18-gauge steel shelves formed to create two angled shelves for display. Shelves are mounted to end panels via eight 3/4" long 5/16"-18 bolts into the end panels. Shelves are finished with a durable powder coat. Standard powder coat color is black unless specified otherwise.
  • The base of each end panel receives a formed steel "L" channel that is mounted to the end panel, which receives two 3" diameter casters/panel.

Overall Dimensions
Height: 43"
Width: 34.5"
Depth: 18

Finishes

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Sprayon Tahiti Blue
Finishes - Sprayon

OPTIONS: 9

Sprayon finishes applies to veneer. There is a one time charger per order/color (call for pricing). Actual colors may differ slightly from these representations.
