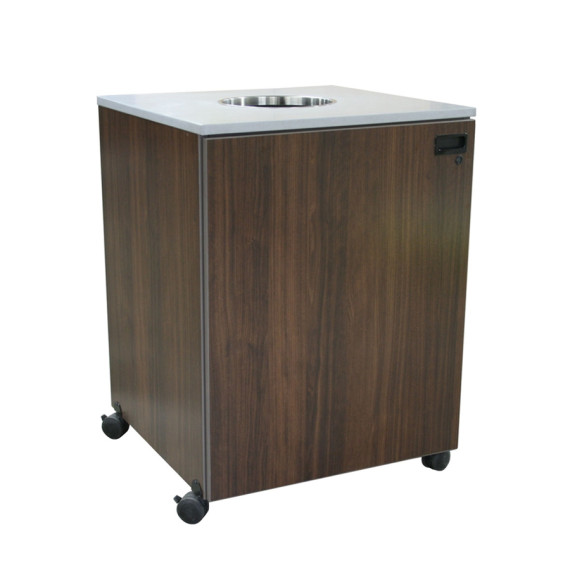

RCP-303036-L-4C

Add to My Project Board

Log in or create an account to create a project board.

Oscar - mediatechnologies

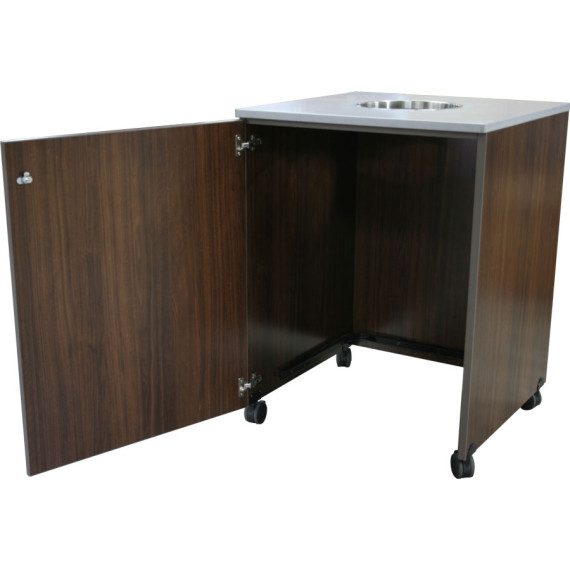

RCP-303036-L-4C open

Add to My Project Board

Log in or create an account to create a project board.

Oscar - mediatechnologies

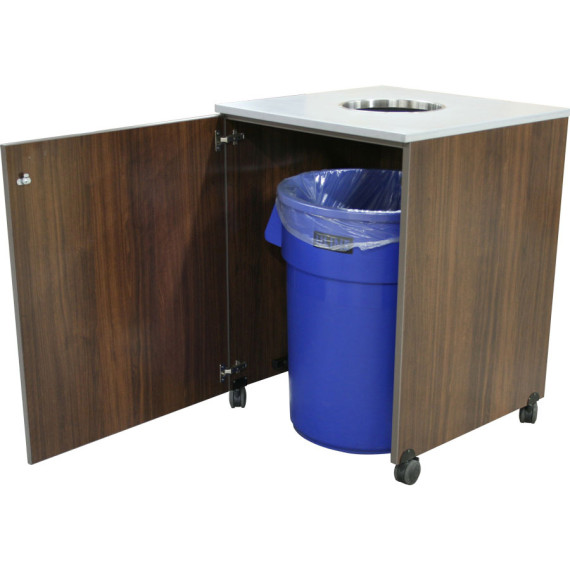

RCP-303036-L-4C with trash can

Add to My Project Board

Log in or create an account to create a project board.

Oscar - mediatechnologies

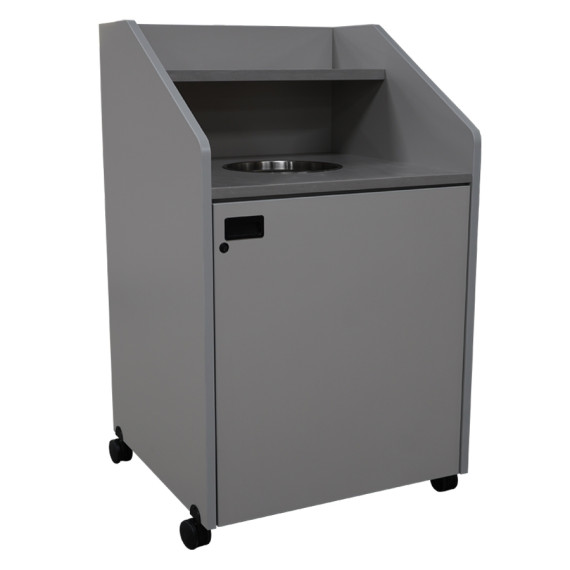

RCP-303048-L-4C

Add to My Project Board

Log in or create an account to create a project board.

Oscar

Oscar is an attractive and very durable enclosure for trash and recycle receptacles.  The sturdy laminate panels are banded with 3mm PVC and feature a full-width door with recessed door handle, lock and locking swivel casters.  Oscar models are available with high-pressure laminate or solid surface tops.  The 48"H model features a trayshelf.

See Full Description

Cut Sheets
List Price Sheets

Cabinet:

Side panels are 7/8” particle board construction with .050” high-pressure laminate on both sides with 3mm PVC banding on exposed edges.  Back panel is 11/16” particle board construction with .050” high-pressure laminate on both sides. Side and back panels have embedded ¼-20 threaded metal inserts to accept machine threaded connecting hardware for metal-to-metal fastener contact with support frame. A 1” x 1” 18-gauge steel U-frame is fastened near the bottom of the cabinet assembly with ¼-20 35mm bolts.  Sub-top is ¾” particle board construction with 3mm PVC banding on exposed edge.  14” diameter opening is located in center of the sub-top. Side panels and sub-top are assembled with dowel and glue joinery.

Two (2) black 75mm twin nylon locking swivel casters are mounted to the bottom of each end panel with caster U-brackets.

Door panel is 11/16” particle board construction with.050” high-pressure laminate on both faces and 3mm PVC banding on all edges and a recessed door pull. Door is hung on concealed hinges.

Top Surface and Trayshelf:

Top surface and Trayshelf (48"H models only) are 7/8” particle board construction with .050” high-pressure laminate top and .030” phenolic backer.  12” diameter opening is centered in the top surface and fitted with a 12” stainless steel liner ring.

Overall Dimensions:

Depth:   30”

Width:   30-11/16

Heights:  36-1/2 and 48”

Suggested Receptacles:

The Oscar Trash Receptacle enclosure is designed to accept:

  • RUBBERMAID BRUTE 32 GALLON with DOLLY or equivalent
  • RUBBERMAID BRUTE 44 GALLON (no DOLLY) or equivalent

Finishes

Formica Elemental Stone8831
Laminates for Tables

OPTIONS: 27

Choose from any currently available standard high pressure laminate from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
PVC

OPTIONS: 20

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
