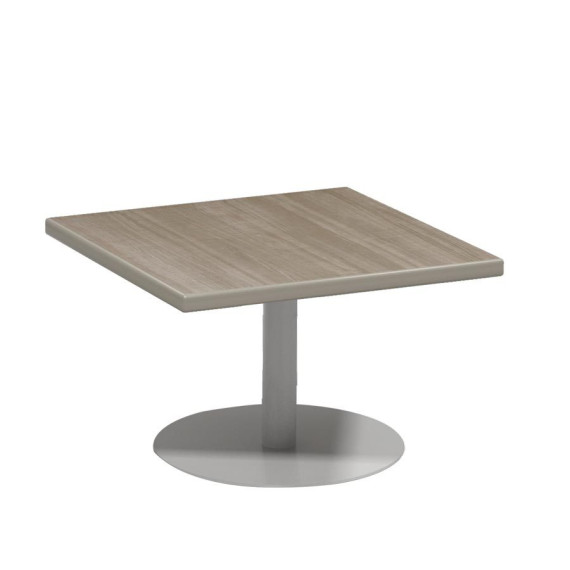

Orbit Occasional Table

By Orbit

Familiar design and feel with the stability and look of the classic powder coated steel disc base.

Orbit occasional tables are 16" high and feature a 17" disc base with a round or square top.  Choose your favorite  high pressure laminate, coordinating PVC edge and powder coat finish to make your table complete.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

Table Top:

Tops are 1-1/4” thick, three ply engineered wood construction with .050” high pressure laminate (HPL) and a phenolic backer sheet. The edge specified for this product are 3mm PVC (“C” prefix to the table size in the part number)

Corners for square tops:

Square corners on banded tops have a 1/8” radius. Radiused corners on square tops have a 2” radius.

17” Disc – Single Column:

14-gauge, 3” diameter column, 5/16” thick steel disc plate, 17” diameter, 11-gauge stamped steel mounting plate, 9.5” x 9.5”. Mini-levelers come standard and will position the base 3/8” off floor.



Finishes

Formica Elemental Stone8831
Laminates

OPTIONS: 27

Choose from any currently available standard high pressure laminate from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
PVC

OPTIONS: 20

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

808 Nickel
Powder Coat Colors Group II

OPTIONS: 5

All chairs are available in Designer powder coat colors. Tables may also be specified with Designer powder coat colors. There is a one time charge per order/color for these powder coats.
