Metro

Your choice of laminate top sits upon your choice of veneer apron and frame assembly. Each leg is tapered and receives a routed, hand painted black detail; each leg is fitted with a leveling glide. Available in round, square or rectangle shapes.

See Full Description

Cut Sheets
AutoCAD

  • Table tops are 1-1/4" thick, three-ply engineered wood construction, with .050" high pressure laminate surface and a phenolic backer.
  • The standard edge is 5/8" x 1-5/8" solid red oak with a 1/2" radius all around.
  • The apron is 1" x 2" with a 1/8" radius on exposed edges. The apron spans the distance between the legs and is attached with #8 screws.
  • The legs are 2-1/2" solid glue up red oak and taper to 1-1/2" at the bottom, with a 1/16" radius on all edges. They are attached to the top by means of a 5" x 5/16" steel plate. The leg and plate are joined by (2) 5/16-18 machine bolts screwed into a 1/2" diameter barrel nut which is embedded in the leg. The steel plate is attached to the table top by (5) 5/16-18 machine bolts screwed into  5/16-18 metal inserts embedded in the top.
  • Legs receive a 1/4" wide by 1/8" deep black detail.
  • Each leg is equipped with a leveling glide.

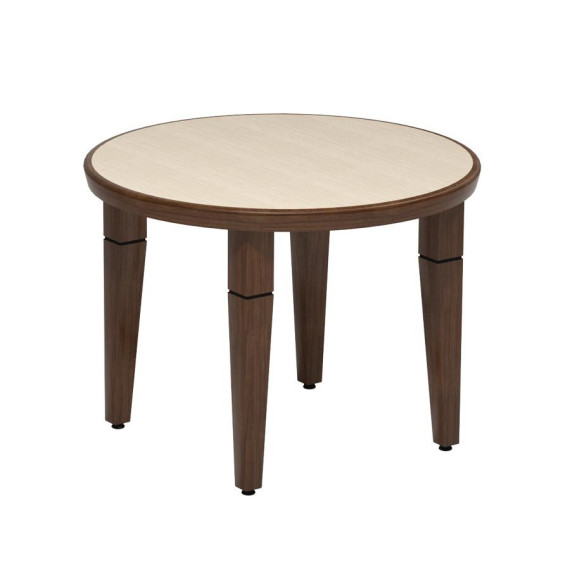

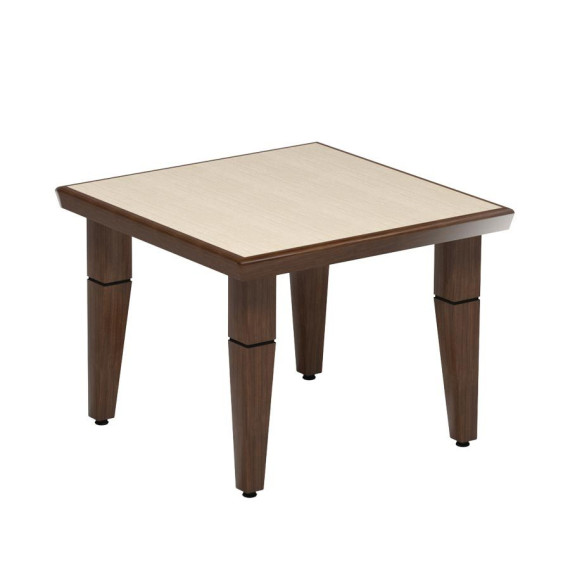

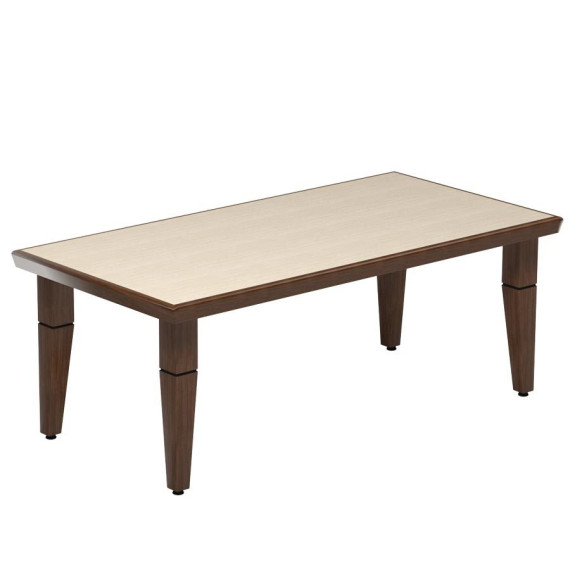

  • Available in rectangle, square and round shapes

Overall Dimensions
Heights: 18", 22"
Depths: 24", 30"
Widths: 24", 30", 48"
Diameter: 30"

Finishes

Formica Elemental Stone8831
Laminates

OPTIONS: 27

Choose from any currently available standard high pressure laminate from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
PVC

OPTIONS: 20

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Natural Oak - NO
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations.

Natural  Maple - NM
Finishes on Maple - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations.
