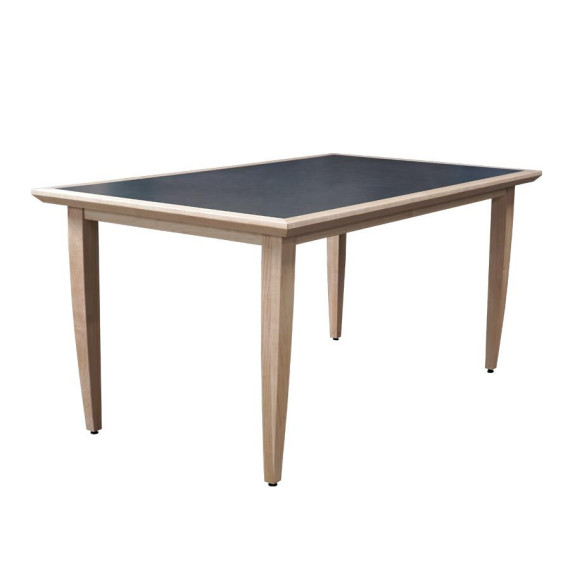

Malibu

Malibu's fully welded steel frame is fitted with adjustable glides (casters are an available option) and supports a laminate top by which you choose the edge type and laminate finish. The edges are available in wood or 3mm PVC.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

  • Tables use two end frame assemblies. Legs are 2" diameter 14 gauge steel tubing and are welded to a wishbone configuration of 1" x 2" 16 gauge steel tubing. The center of the wishbone is a 1/4" steel plate through which the stretcher is mounted.
  • Tops are 1-1/4" thick, three ply engineered wood construction with .050" high pressure laminate and a phenolic backer. The corners of the top are rounded with a 3" radius. Various edge options are available. Tops 60" and over are supported on the underside with a 14 gauge steel keel.
  • The table top is attached elevated from the 1" x 2" steel tubing portions of the end frame and stretcher with 1/4-20 by 4"  bolts.
  • Legs are fitted with adjustable glides
  • Casters are optional

Overall Dimensions
Height: 29"
Widths: 24", 30", 36"
Lengths: 36", 42", 48", 60", 72"
Square and Round: 42", 48"

Finishes

Hardrock Maple-CP20332
PVC

OPTIONS: 20

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

808 Nickel
Powder Coat Colors Group II

OPTIONS: 5

All chairs are available in Designer powder coat colors. Tables may also be specified with Designer powder coat colors. There is a one time charge per order/color for these powder coats.
