Lexington - mediatechnologies

L2424T-22

Add to My Project Board

Log in or create an account to create a project board.

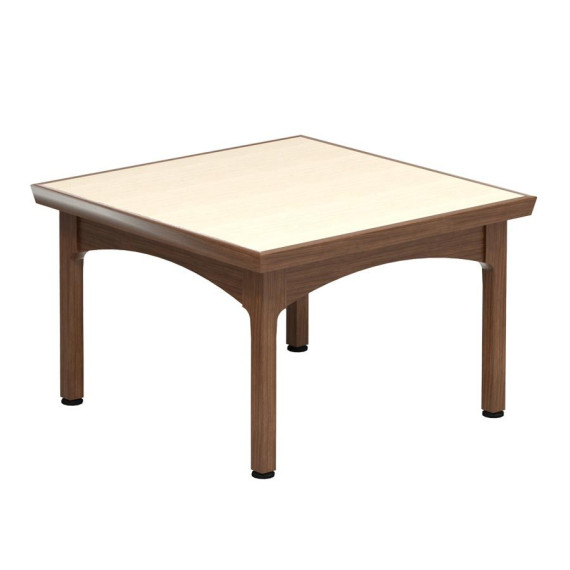

Lexington

Your choice of laminate top sits upon your choice of veneer apron and frame assembly. The apron's soft arch adds richness to an otherwise ordinary table. Each leg is fitted with a leveling glide. Available in round, square or rectangle shapes.

See Full Description

Cut Sheets
AutoCAD

  • Table tops are 1-1/4" thick, three-ply engineered wood construction, with .050" high pressure laminate surface and a phenolic backer.
  • The standard edge is 5/8" x 1-5/8" solid red oak with a 1/2" radius all around.
  • The apron is 1"x 3-3/4" with a 1/8" radius on the exposed edges. Each apron is machined to a gentle arch, 2" deep at midspan. Aprons span the distance between the legs and are attached with #8 screws.
  • Legs are 2-1/4" solid glued up red oak with a 3/8" radius along all edges. They are attached to the top by means of a 5" x 5/16" steel plate. The leg and plate are joined by (2) 5/16-18 machine bolts screwed into a 1/2" diameter barrel nut which is embedded in the leg. The steel plate is attached to the table top by (5) 5/16-18 machine bolts which screw into 5/16-18 metal insert embedded in the top.
  • Each leg is equipped with a leveling glide

Overall Dimensions
Heights: 18", 22"
Depths: 24", 30"
Widths: 24", 30", 48"
Diameter: 30"

Finishes

Formica Elemental Stone8831
Laminates for Tables

OPTIONS: 27

Choose from any currently available standard high pressure laminate from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
PVC

OPTIONS: 20

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Natural Oak - NO
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations.

Natural  Maple - NM
Finishes on Maple - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations.
