Charleston

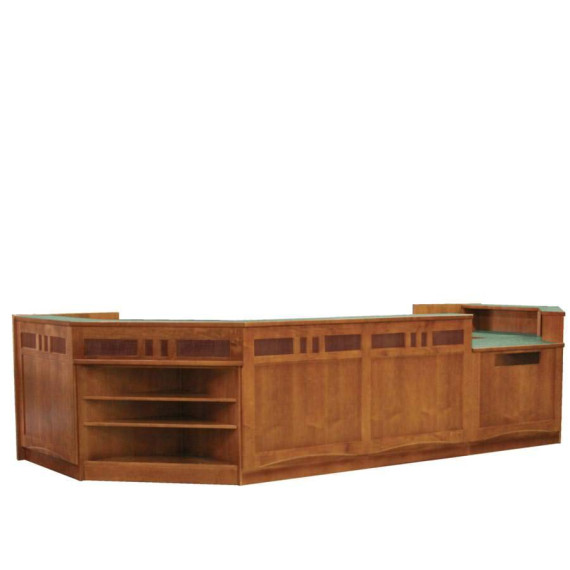

Charleston Modular Circulation Desks feature an engineered wood construction case with plain sliced "A" grade veneer finish and wood banding. A combination of the mission detail and stile design for a modern twist on a classic style.  Applied to the patron side of most modular units.  Worksurface is high pressure laminate.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

  • Modular case system: Each case module is fully assembled, allowing for simple field assembly of the complete circulation desk as well as for easy reconfiguration, if necessary. Cases connect with male/female threaded metal connectors.
  • Tops are 1-1/4" thick, three ply engineered wood construction with .050" high pressure laminate, and a phenolic backer sheet. The patron side is edged with 5/16" x 1-1/4" solid red oak (with the exception of Malibu and Keystone designs which have a 1-5/8") with a 1/4" radius top and bottom. The edges and back side of the top are edged with 1/8" solid red oak.
  • Case Construction: Circulation desk modules are constructed of /4" thick, three ply particleboard with plain sliced "A" grade oak veneer. All modules, except Malibu style, utilize a continuous front design (sides do not penetrate), with a 4" high recessed toe. Cabinets are assembled using glue and dowel joinery. Note: One terminating end panel is required for each exposed end of a complete desk assembly.
  • Adjustable shelves are 3/4" thick three ply particleboard plywood with "A" grade oak veneer faces. The exposed edges are edged with 1/8" solid red oak. Shelves are adjustable on 32mm increments.
  • Drawers are constructed of 1/2" nine ply baltic birch plywood. Drawers have 3/4" thick fronts with "A" grade oak veneer. Box and file drawers have 100 lb. full extension slides.
  • Doors are constructed of 3/4" thick, three ply particleboard with plain sliced "A" grade oak veneer faces and edged on all sides with 1/8" solid red oak. Door hardware includes concealed hinges, fully adjustable in all 3 axes, and wire pulls.
  • Continuous tops may be specified.
  • Locks may be specified with doors and/or drawers, keyed randomly or alike.
  • One terminating end panel is required for each exposed end of a complete desk assembly. End panels are available in all standard designer lines.

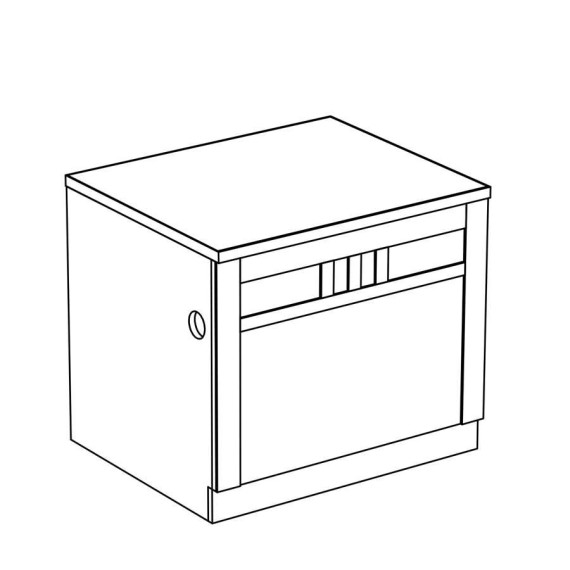

Model number example for Charleston desk unit

MCD-CL-36D-29

Finishes

Sprayon Tahiti Blue
Sprayon

OPTIONS: 9

Sprayon finishes applies to veneer. There is a one time charger per order/color (call for pricing).  Actual colors may differ slightly from these representations.

Viva Walnut
Melamines (TFL) Group II

OPTIONS: 4

Additional lead times may apply. Coordinating PVC and HPL finishes are available for most melamine selections.

Stainless
Melamines (TFL) Group I

OPTIONS: 5

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless Aluminum.

Formica Elemental Stone8831
Laminates

OPTIONS: 21

Choose from any currently available standard high pressure laminate from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Natural Oak - NO
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations.

Hardrock Maple-CP20332
PVC

OPTIONS: 20

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Natural  Maple - NM
Finishes on Maple - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations.
