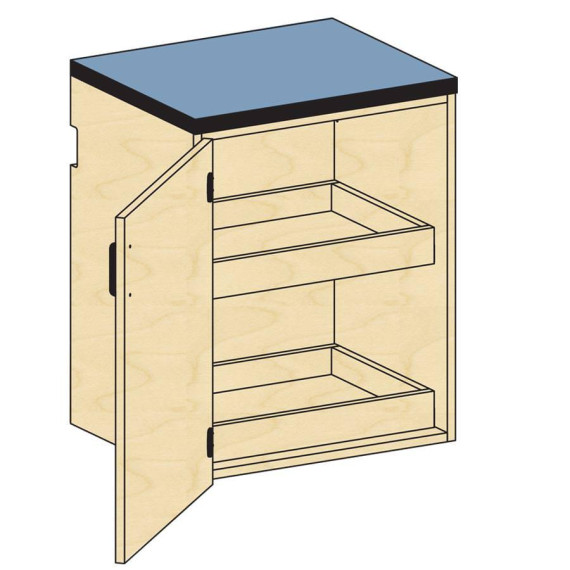

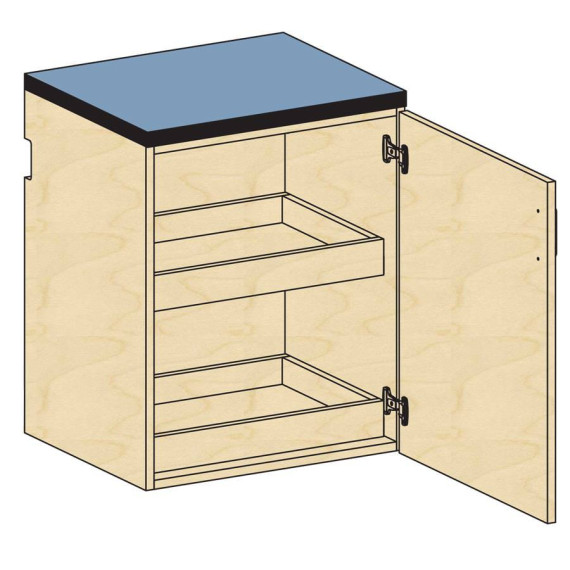

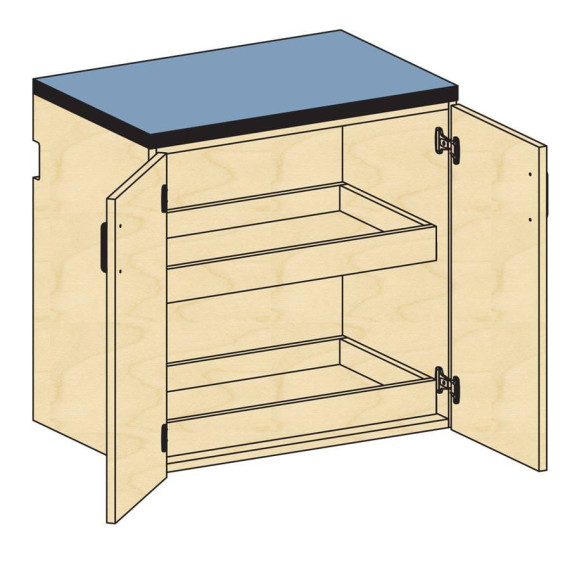

Base Roll Out

By Elements

See Full Description

Videos

List Price Sheets

elements Base List Price Sheet (.pdf, 1.742 MB)

Overview
Finishes

Cabinet construction available with 3/4" thick NU Green engineered wood side panels, sub-tops, vertical dividers and shelves. Base cabinet bottoms and all adjustable shelves over 36" in length are 1" thick NU Green engineered wood.
Dowel construction meets AWI Premium Standards.
1/4" thick cabinet backs: capture in cabinet grooves.
Dowel pinned structural 3/4" stringers add rigidity.
Factory installed cabinet hangers: fully adjustable. Rated at 220 lbs. each. Recommended maximum load capacity for base cabinets with a standard top shall be 100 lbs. per linear foot.
Full 4-sided drawer boxes use 3/4" thick material with TFL finish and PVC edges.
Tops are available in 2 options: Standard top - cabinet receives individual modular top constructed of 1-1/4" thick engineered wood with .050" high pressure laminate (HPL) and a phenolic backer sheet. Edges are 3mm PVC on front and .5mm (.020) PBC on sides and back. OR CT: Continuous top - Cabinet will be constructed with a sub-top only. Continuous tops are ordered as separate line item.
Box finish is applied to all exterior cabinet faces; Available in TFL (melamine), HPL (laminate), Oak or Maple veneer.

Finishes

Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
