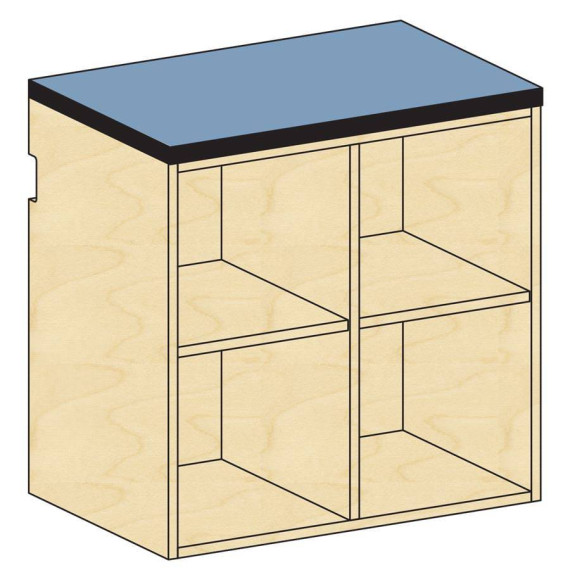

Base Cubicle Storage - mediatechnologies

BOCB4

Add to My Project Board

Log in or create an account to create a project board.

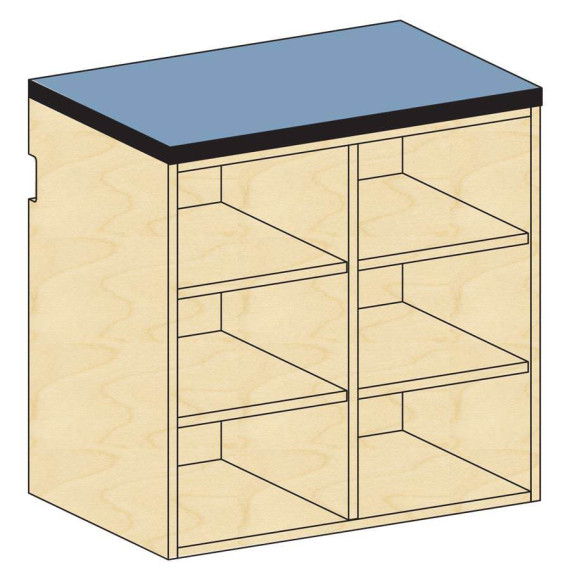

Base Cubicle Storage - mediatechnologies

BOCB6

Add to My Project Board

Log in or create an account to create a project board.

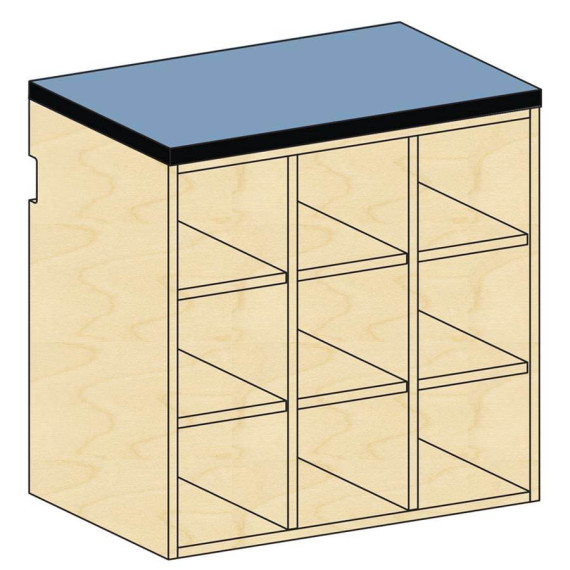

Base Cubicle Storage - mediatechnologies

BOCB9

Add to My Project Board

Log in or create an account to create a project board.

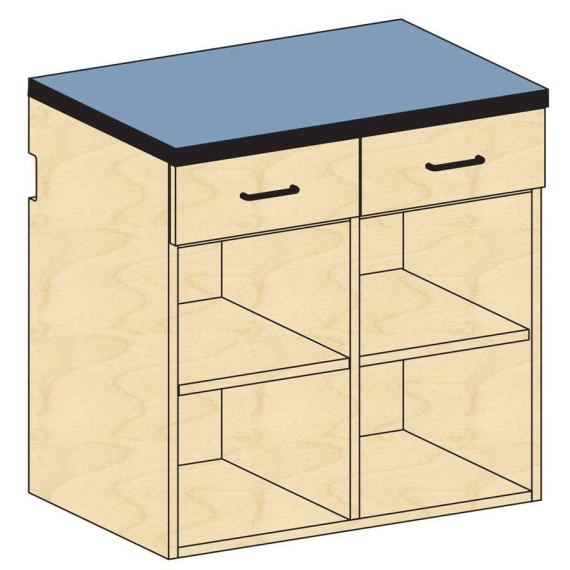

Base Cubicle Storage - mediatechnologies

BOCB4D2

Add to My Project Board

Log in or create an account to create a project board.

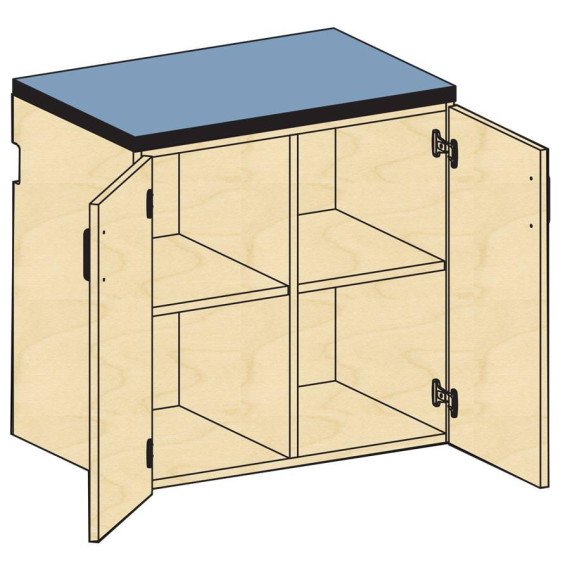

Base Cubicle Storage - mediatechnologies

BCCB4

Add to My Project Board

Log in or create an account to create a project board.

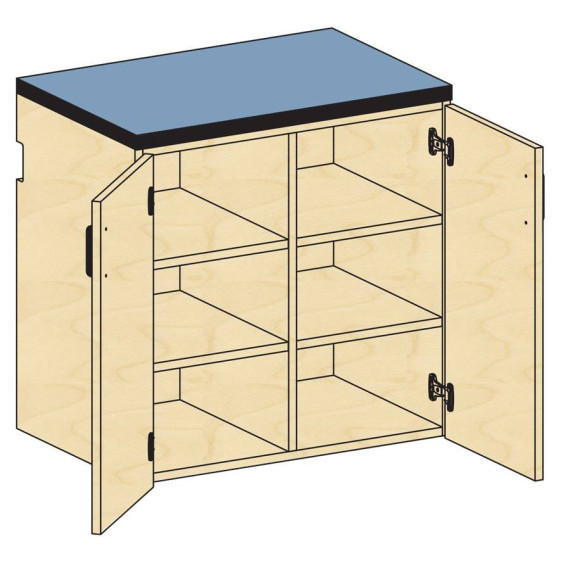

Base Cubicle Storage - mediatechnologies

BCCB6

Add to My Project Board

Log in or create an account to create a project board.

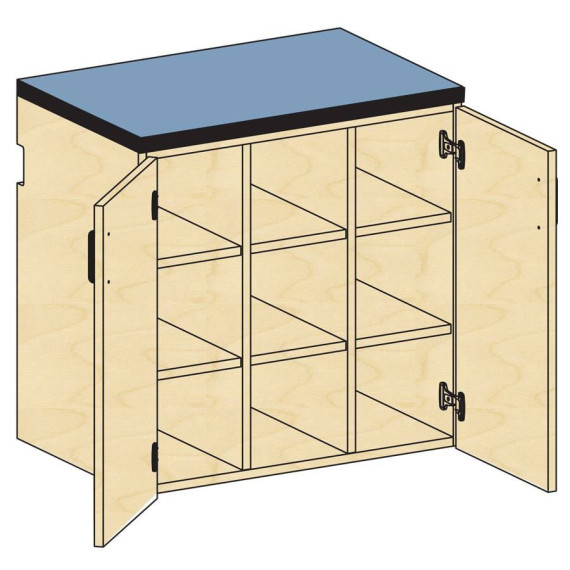

Base Cubicle Storage - mediatechnologies

BCCB9

Add to My Project Board

Log in or create an account to create a project board.

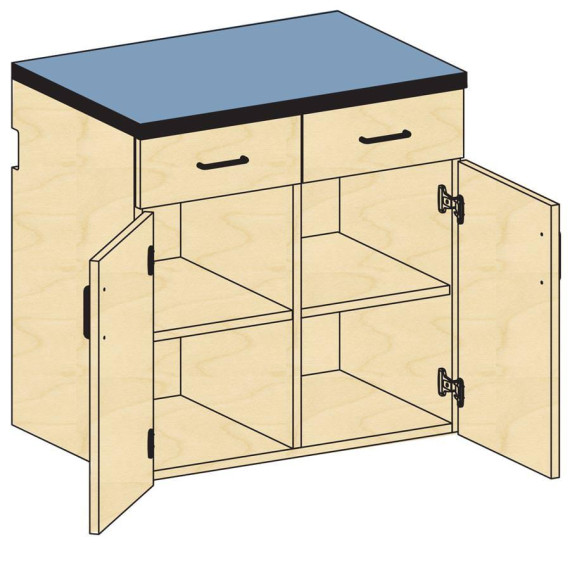

Base Cubicle Storage - mediatechnologies

BCCB4D2e

Add to My Project Board

Log in or create an account to create a project board.

Base Cubicle Storage

By Elements
Videos
Catalogs
AutoCAD
Specbook Pricers

  • Cabinet construction available with 3/4" thick NU Green engineered wood side panels, sub-tops, vertical dividers and shelves. Base cabinet bottoms and all adjustable shelves over 36" in length are 1" thick NU Green engineered wood.
  • Dowel construction meets AWI Premium Standards.
  • 1/4" thick cabinet backs: capture in cabinet grooves.
  • Dowel pinned structural 3/4" stringers add rigidity.
  • Factory installed cabinet hangers: fully adjustable. Rated at 220 lbs. each. Recommended maximum load capacity for base cabinets with a standard top shall be 100 lbs. per linear foot.
  • Full 4-sided drawer boxes use 3/4" thick material with TFL finish and PVC edges.
  • Tops are available in 2 options: Standard top - cabinet receives individual modular top constructed of 1-1/4" thick engineered wood with .050" high pressure laminate (HPL) and a phenolic backer sheet. Edges are 3mm PVC on front and .5mm (.020) PVC on sides and back. OR CT: Continuous top  - Cabinet will be constructed with a sub-top only. Continuous tops are ordered as separate line item.
  • Box finish is applied to all exterior cabinet faces; Available in TFL (melamine), HPL (laminate), Oak or Maple veneer.

Finishes

Natural  Maple - NM
Finishes on Maple - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations.

Natural Oak - NO
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations.

Formica Elemental Stone8831
Laminates

OPTIONS: 21

Choose from any currently available standard high pressure laminate from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Stainless
Melamines (TFL) Group I

OPTIONS: 5

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless Aluminum.

Viva Walnut
Melamines (TFL) Group II

OPTIONS: 4

Additional lead times may apply. Coordinating PVC and HPL finishes are available for most melamine selections.

Hardrock Maple-CP20332
PVC

OPTIONS: 20

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
